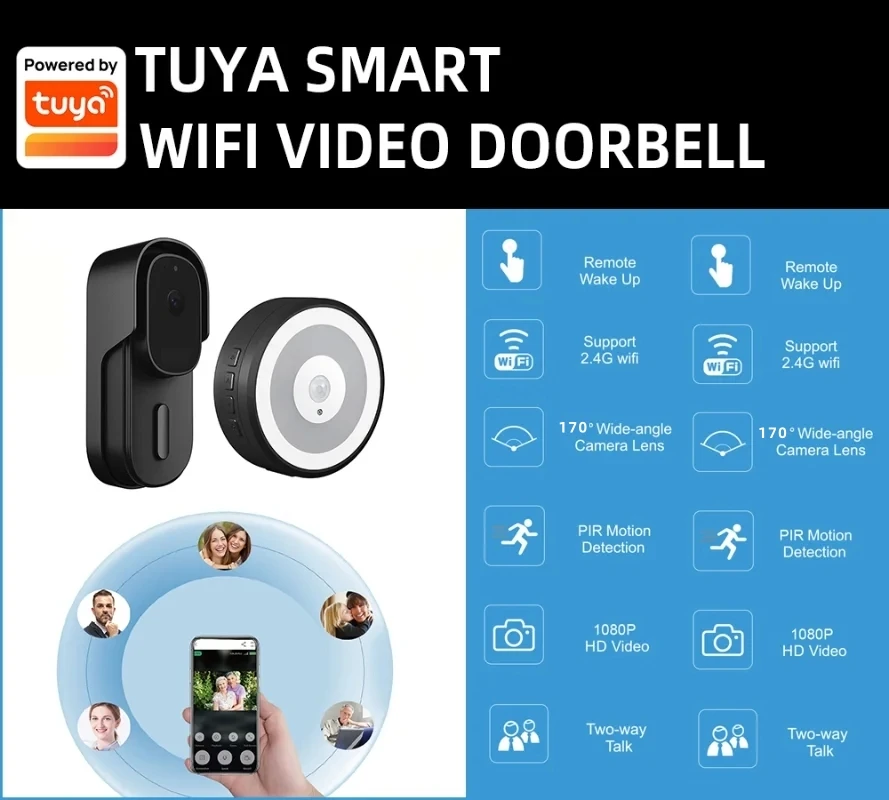

Tuya Smart Video Doorbell Wireless Wifi Wired AC DC 5V-24V Powered 5200 Battery 1080P Outdoor Door Bell Camera Alexa Google Home

APP:Tuya Smart / Smart Life

Microphone:Captures sound for your video

Sensor type:1/3″ CMOS

Pixel:2-mega pixel

Viewing Angle:170°

Shutter:1/25~1/100,000 per second

IR:4pcs 5mm 850nm LED

Video Compression Standard:H.264/H.265

Maximum Image Resolution:1920×1080

Frame Rate:1~25 per second

Audio:Full duplex audio

Storage:TF Card (Max. 128G) & Cloud Storage

Image Setting:Support HD/SD, support mirror

Reset:Support

Interface Protocol:Private

General Function:Dual stream, password protection

WIFI:Support 2.4G WIFI IEEE802.11b/g/n

Triggering Method:button triggering, PIR motion detection triggering

Working Temperature & Humidity:-20℃~50℃, humidity less than 90%

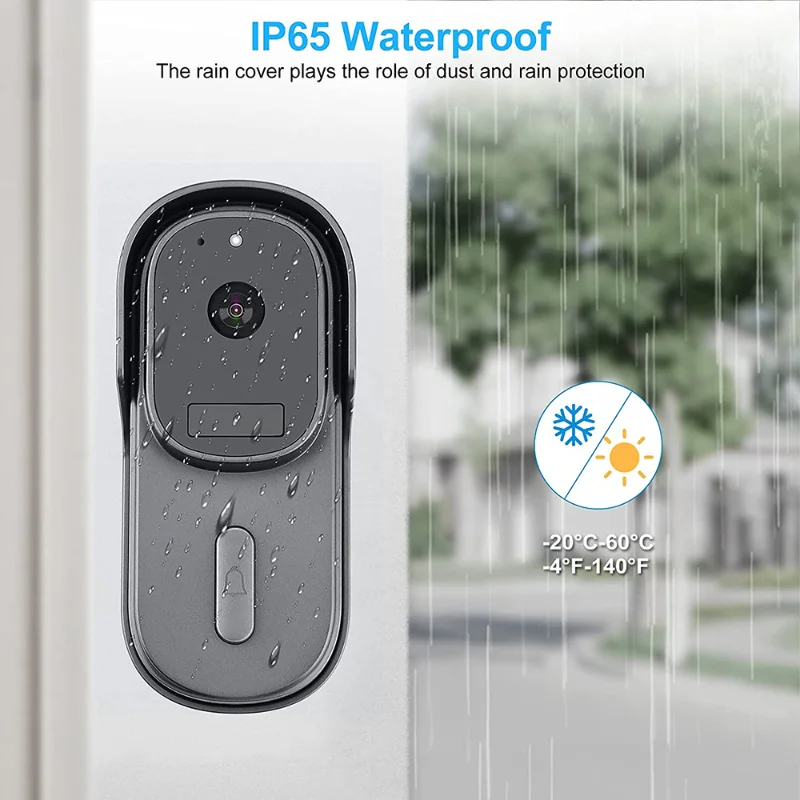

Waterproof:IP65

Power Supply:2*18650 5200mAh Battery / AC 8-24V&DC12-24V/1A

Two Way Audio

When the visitor push the doorbell button, you will get a call
notification. You can see and hear the visitor if get through the call in your APP

PIR Motion Detection

Call notification will be sent to your phone APP when movement is detected.

Share Device

The doorbell can be shared with families and friends and they
can also preview online.

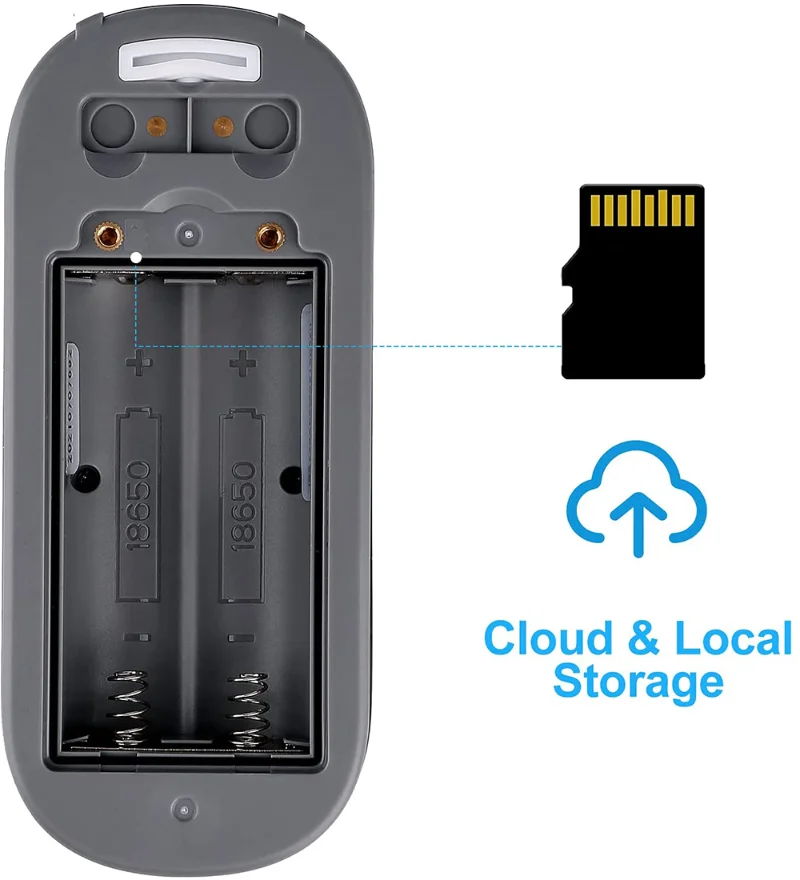

Record

Record every moment using SD card storage or cloud storage.

Night Vision

Powerful night vision means no interruptions even in the night.

Note:

【1080P Wifi Video Doorbell Camera & Work with Alexa, Google Assistant】

Provide surveillance of all front door activity in high definition 1920x1080p resolution. This home security camera features an extra-wide 170° viewing angle allowing you to cover every angle. You can also install everywhere. Working with Google Assistant or Amazon Alexa. Just say “Alexa, show me my front door”, enjoy the convenience of a smart doorbell.

Our device has opened the alexa function in advance, the following video is the connection method, or you have your own connection method;

【170° Wide Angel and PIR Motion Detectoin】

The WiFi doorbell camera provides wider viewing angle greatly reduces the blind area and built-in PIR & motion sensor detects that effectively filters out invalid alerts. Once a motion has been detected, the video doorbell will send a message to your smartphone via TUYA APP to help better detect family actions such as postman or thieves. Make you feel at ease even at night or you go out.(Only supports 2.4GHz Wi-Fi)

【Real-Time 2-Way Talk & TF Card and Free Cloud Storage for First Month & Family Sharing】

Wireless Doorbell Camera can provide you real-time clear 2-way audio with built-in microphone and speaker. Support up to 128G SD card for saving recorded video(not including SD card) and FREE cloud storage at first month, App will remind to renew after expiration, and allows up to 6 people to view online footage at the same time.

【Day&Night Vision & Intelligent Auto Light-up Chime 】

It monitors your home with infrared night vision and live view, provides surveillance of all door activity, no matter how dark it is outside the door, it can shoot clearly. Chime to hear notifications for your doorbell camera when someone rings the doorbell. Also, the LED will automatically light up when a human body is sensed at night, and will automatically turn off when the person leaves the sensing range for 35 seconds

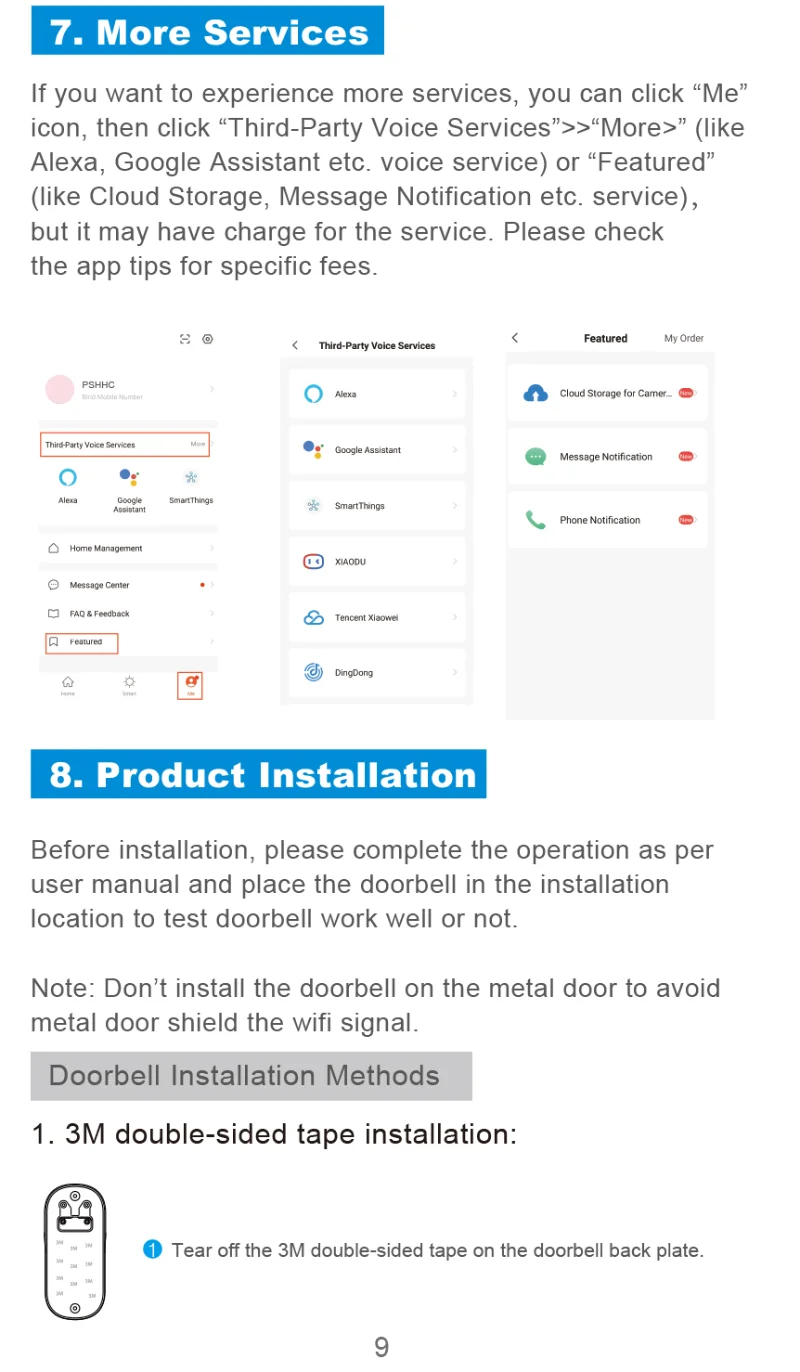

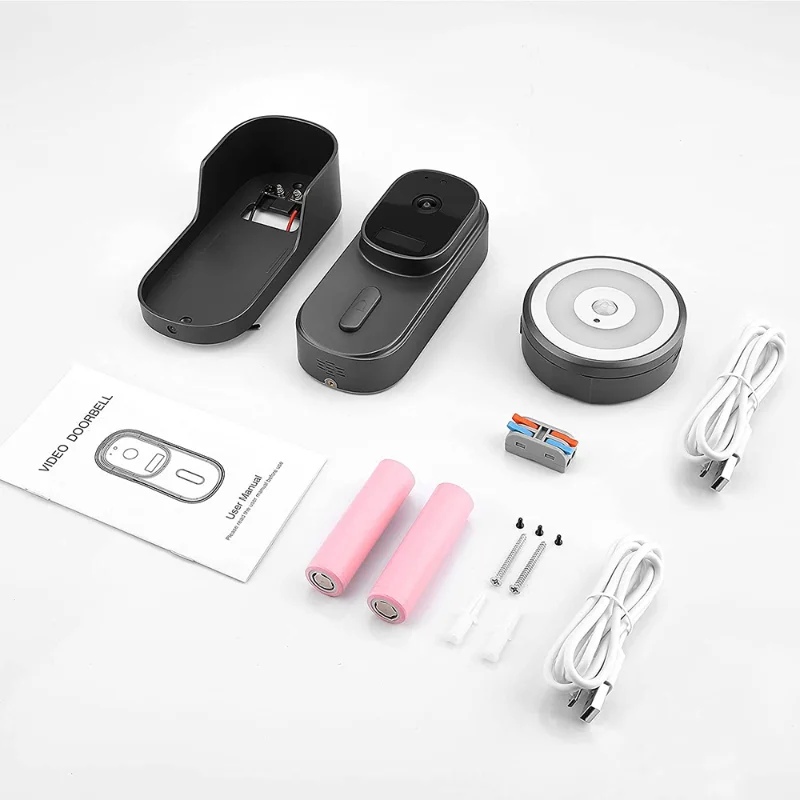

【Powered by Wired and Battery & Easy to Install】

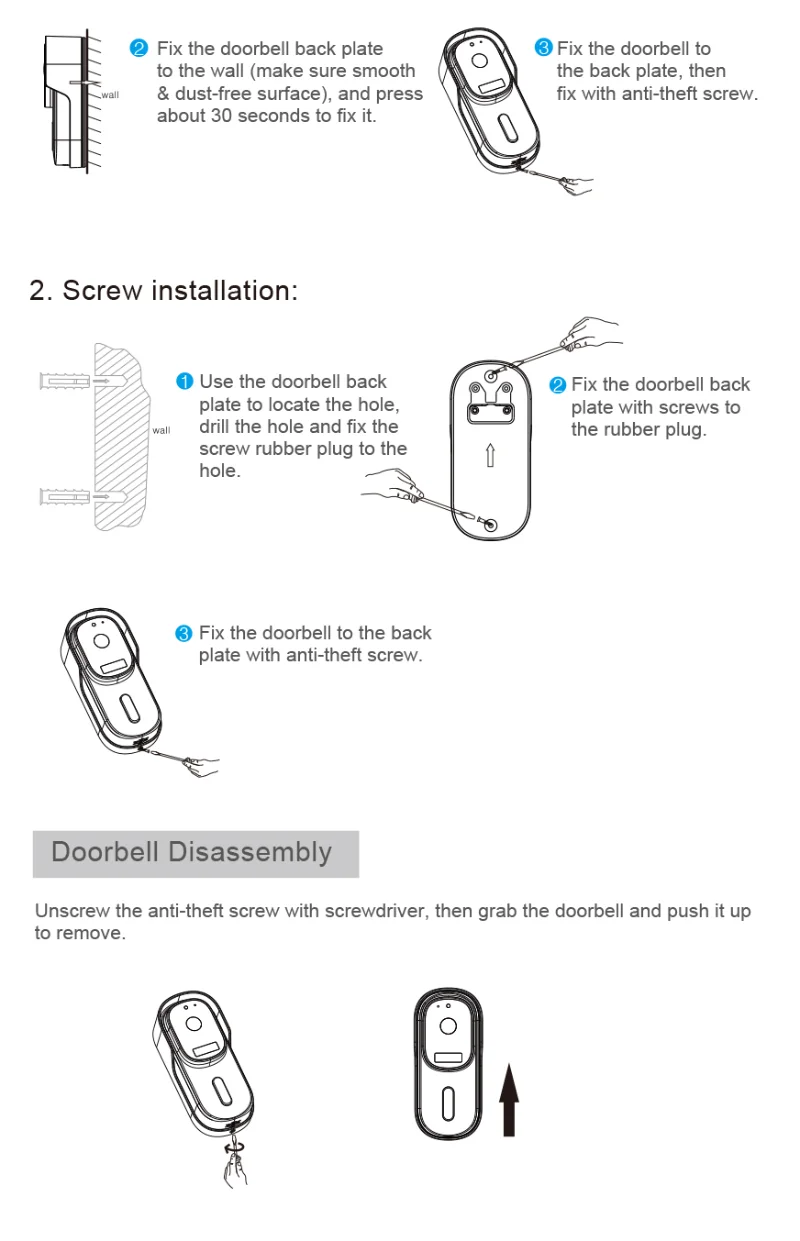

Powered by using your home’s existing doorbell wiring (12V-24V) and rechargeable 18650 battery(Not Included). Two power supply methods meet your different needs. You can install the Doorbell Camera without using any complicated tools. It comes with screws and double-sided adhesives allowing you to install it anywhere. Please connect the phone and test the function of the machine before installation.

Q:What should I pay attention to when testing?

A:Please read our manual carefully before testing, if any questions, please check with our factory. Most importantly, when speak with visitor in front of doorbell, pls place the phone at least 5m away from the doorbell, which won’t cause signal interference or noise.

Q: When does the doorbell need to be reset? And how to reset?

A: It needs to be reset when the doorbell couldn’t work well normally or can’t be connected to the phone. You can use the screwdriver or other tooling to press the Reset hole for about 10 seconds to reset.

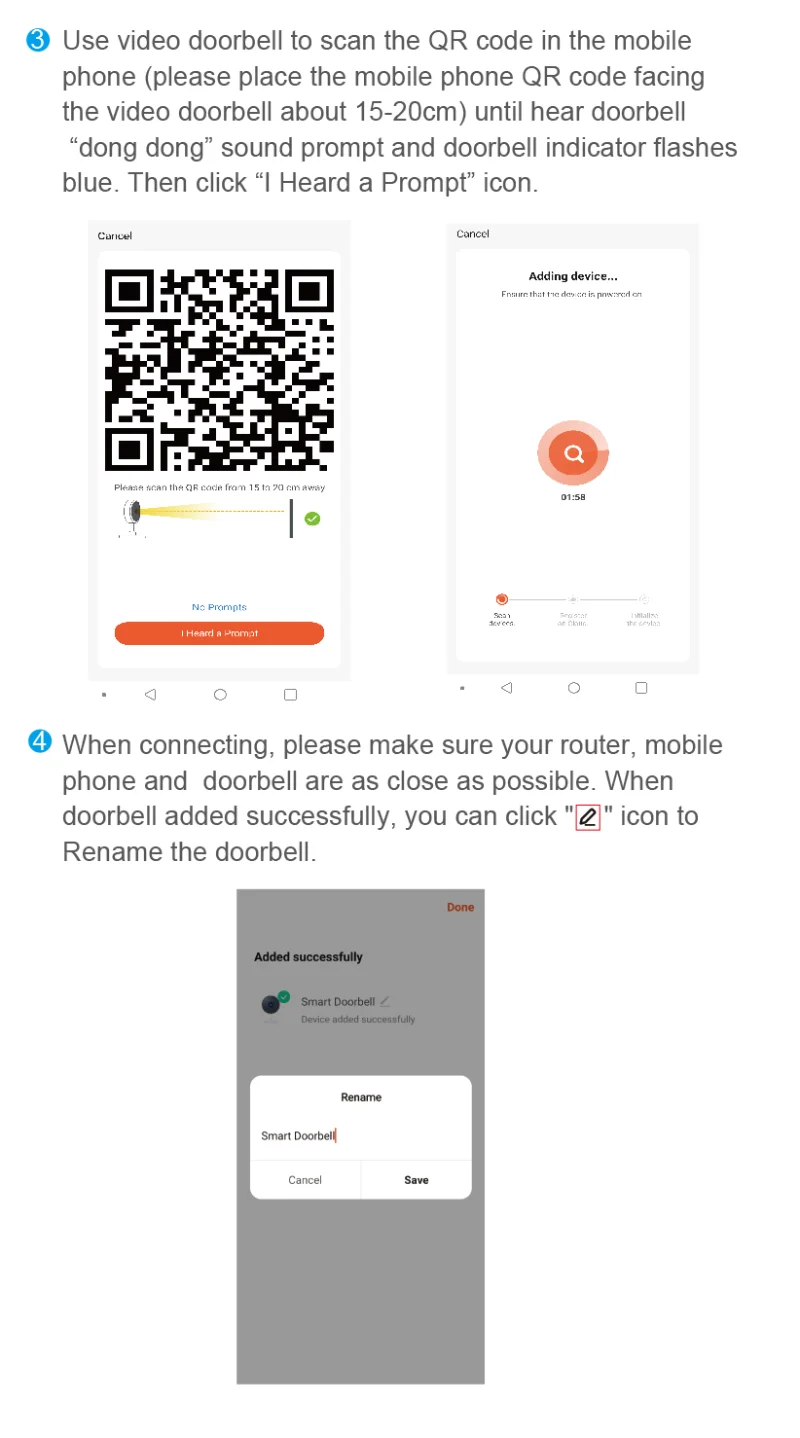

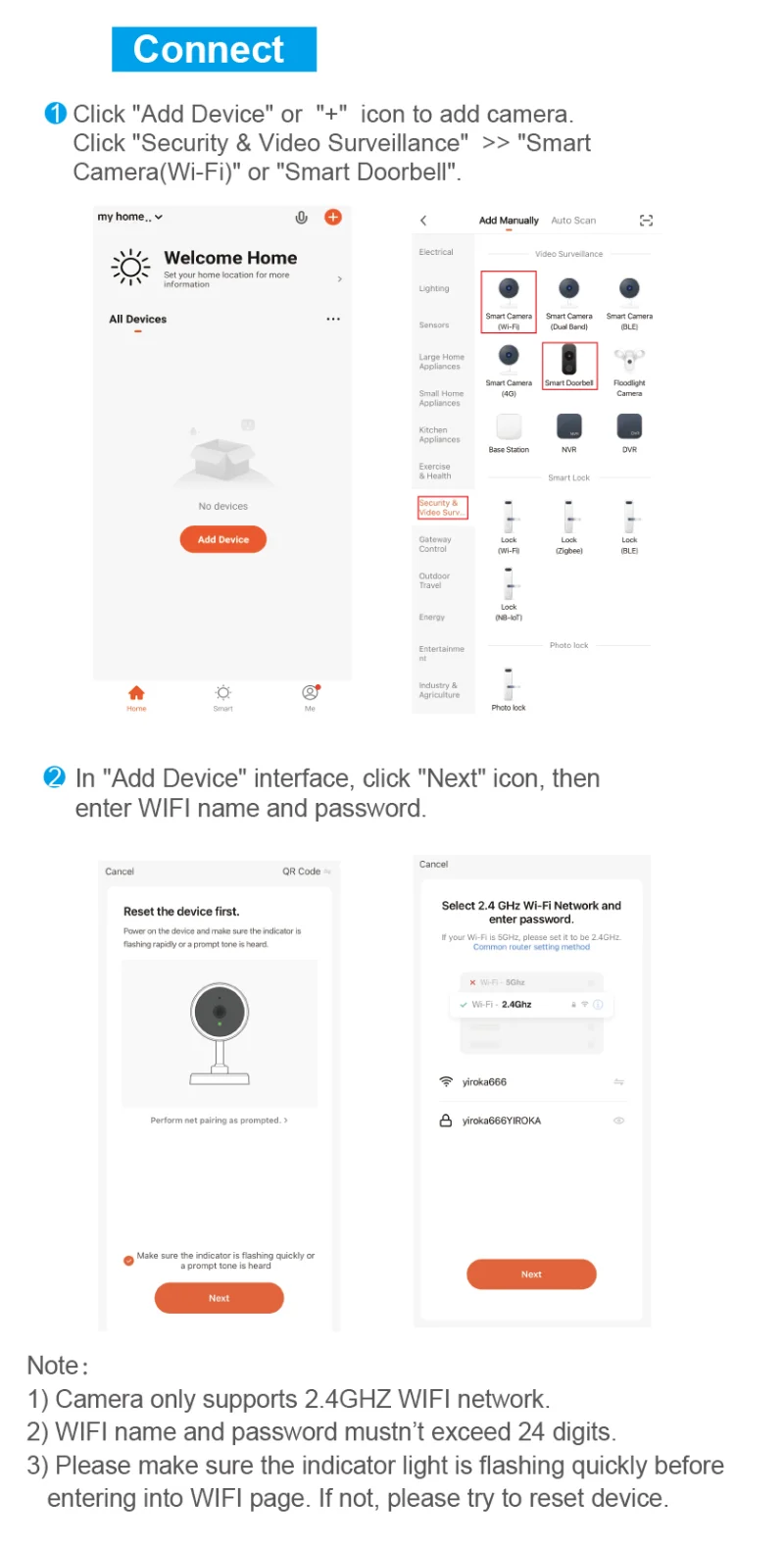

Q: How to do if repeated adding failed?

A: After adding failed for first time, please reset the doorbell or power off, then try to add again. And it only supports 2.4GHZ WIFI router, please make sure you are using a 2.4GHZ WIFI router, also correct wifi password.

Q: The doorbell video cannot be previewed properly?

A: Check whether network is good or not, you can place the doorbell close to the router. If still not works, pls reset the doorbell and add again.

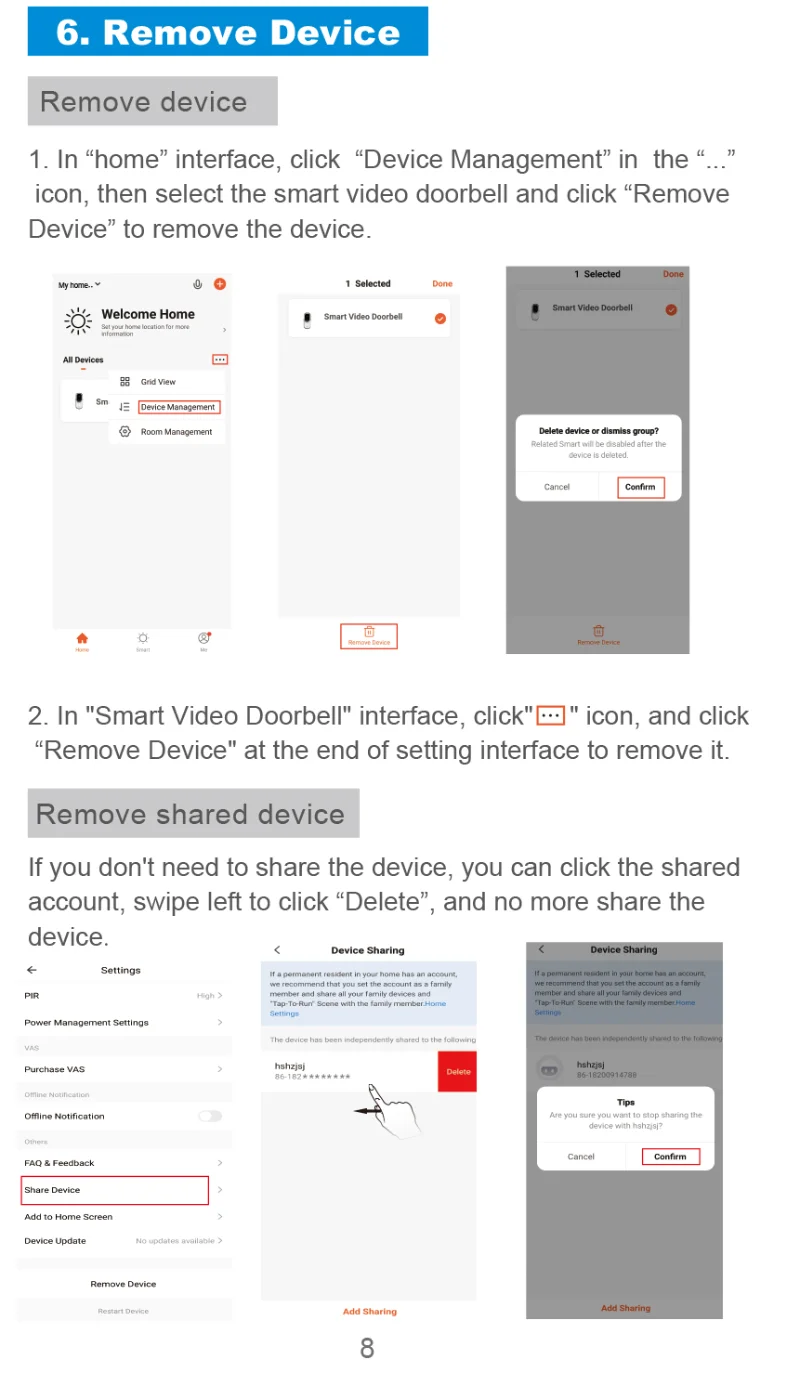

Q: How to change doorbell network to another router?

A: Remove the device on the APP and configure the device again.

Q: Why Can’t I receive the push message notification by phone APP?

A: Please confirm that the APP has been running well on the phone, and relevant reminder function has been opened like message notification and authority confirmation in the phone system.

Q: Why doesn’t the device identify the SD card?

A: Please insert the SD card before doorbell powered on. And make sure whether SD card is good and FAT32 format or not.
