New Arrival 12V-24V 5.8GHz Microwave Sensor Light Switch Induction Microwave Motion Sensor Body Motion HF Detector Light Switch
Description:
100% Brand New and High Quality.
The microwave sensor is an active sensor, and the HF sensor emits high frequency electromagnetic waves (5.8 GHz) and receives their echoes.
This sensor detects changes in the echo or even tiny movements within its detection range.
The microprocessor triggers the “lights up” command. Signals passing through the door, glass plates and thin walls may be detected.
Note: The detection of people or objects moving toward the lamp is more sensitive!
The high-frequency output of this sensor is less than 10mW, which is only one percent of the mobile power of mobile phones and microwave ovens.
This product is a moving object sensor with a detection range of 360 degrees and an operating frequency of 5.8 GHz.
The advantage of this product is stable working condition (stable operating temperature: 0 °C – +70 °C)
This product uses a microwave sensor (high frequency output is less than 0.2lMw), so it is safe and performs better than infrared sensor.
It can be installed in products made of glass or plastic, as these materials have little effect on the sensor.
Specification:
Working voltage: AC220～240V 50/60Hz
Load power: 600W (inductive load) / 1200W (resistive load)
Installation method: indoor, wall or ceiling installation
HF system: 5.8GHz +/- 75MHz CW radio wave, ISM band
Detection angle: 360°

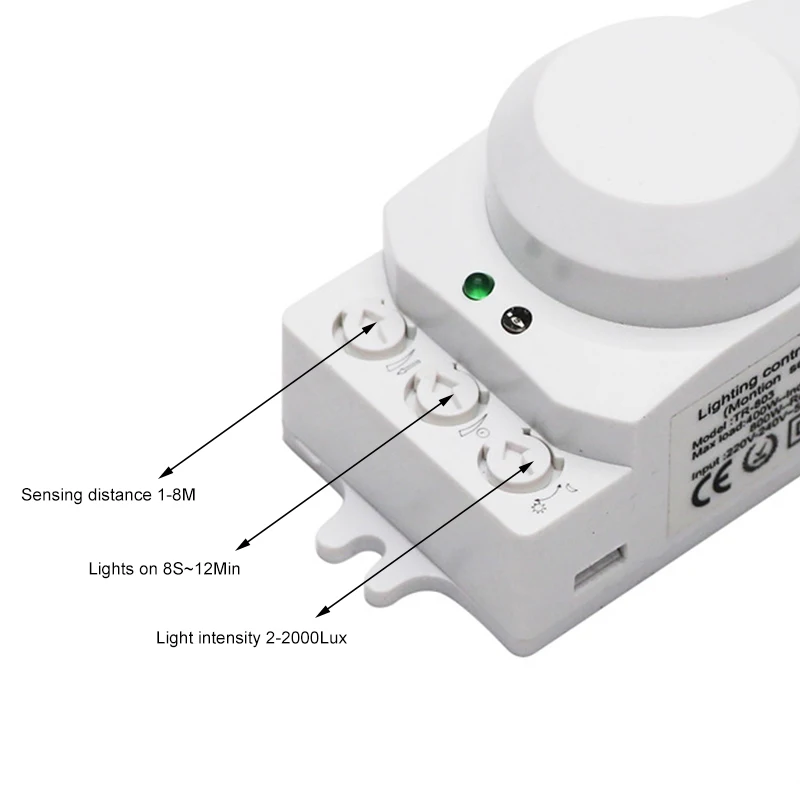

Detection distance: 1-8m (radius), adjustable
Working delay: 8 seconds to 12 minutes, adjustable
Light control illumination: 2~2000LUX
Power consumption: | nearly 0.9W
Working temperature: -10 ° C ~ 70 ° C

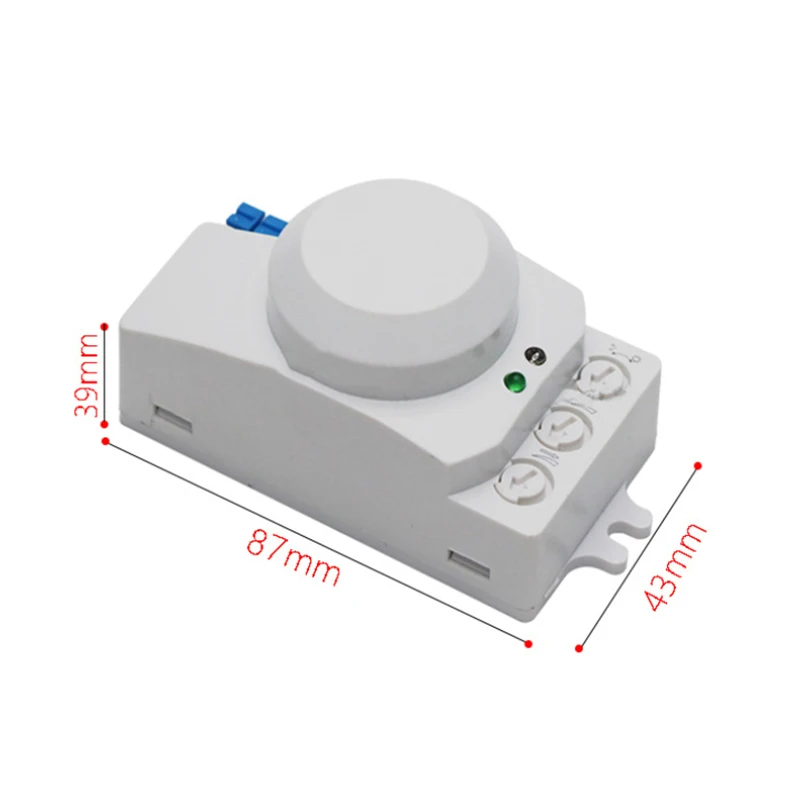

Product size: 87 × 43 × 39 (mm)
Weight: Gross weight: 75g Net weight: 60g
Specifications:
Working voltage: AC220～240V 50/60Hz
Load power: 600W (inductive load) / 1200W (resistive load)
Installation method: indoor, wall or ceiling installation
HF system: 5.8GHz +/- 75MHz CW radio wave, ISM band
Detection angle: 360°
Detection distance: 1-8m (radius), adjustable
Working delay: 8 seconds to 12 minutes, adjustable
Light control illumination: 2~2000LUX
Power consumption: | nearly 0.9W
Working temperature: -10 ° C ~ 70 ° C
Product size: 87 × 43 × 39 (mm)
Weight: Gross weight: 75g Net weight: 60g
Package Included:
1* sensor switch
2* screw
1* instruction manual
Notes:
Note: The detection of people or objects moving toward the lamp is more sensitive!
The high-frequency output of this sensor is less than 10mW, which is only one percent of the mobile power of mobile phones and microwave ovens.
