Product Instruction

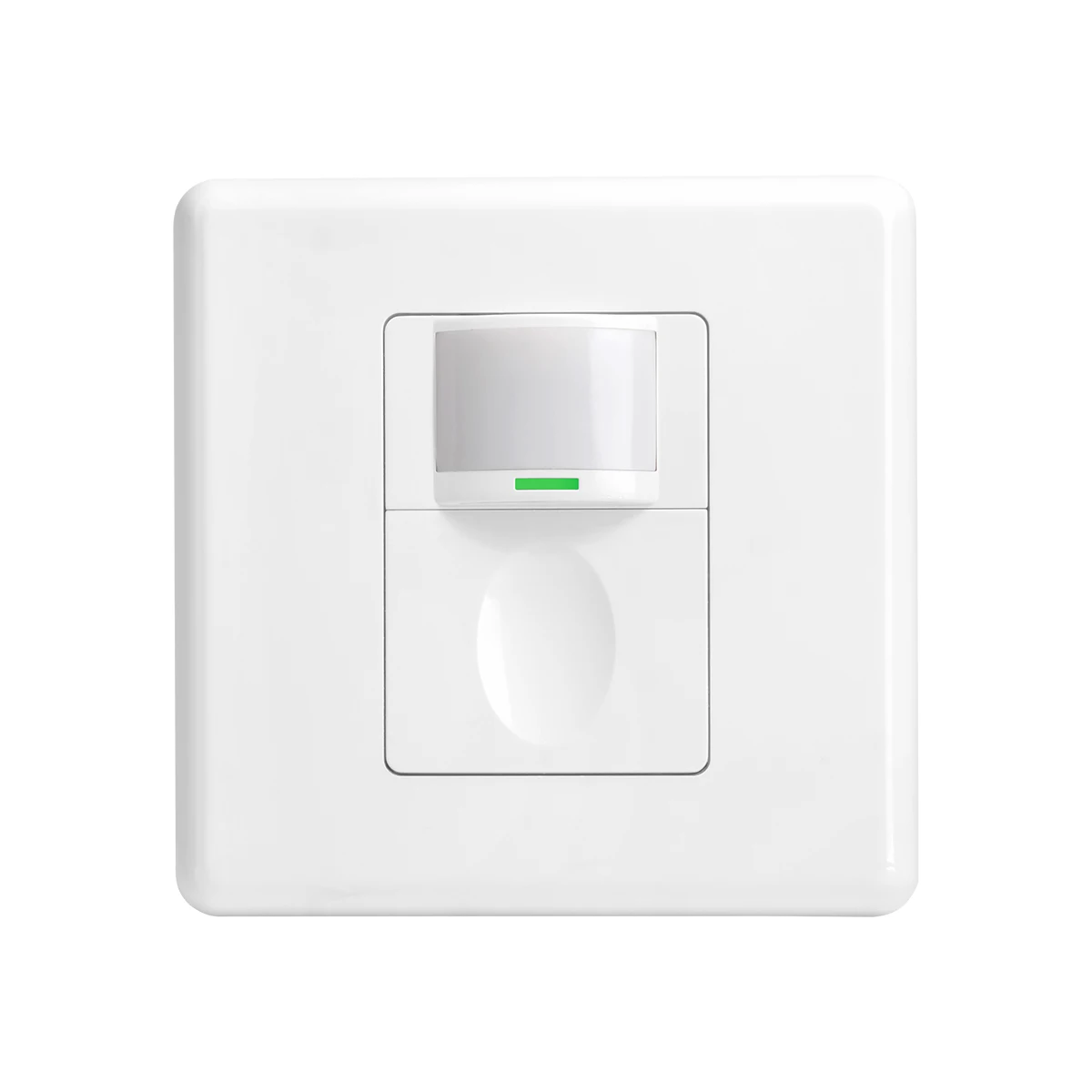

The SK022 series occupancy sensor switch can automatically turn lights or fan on and off by detect heat emitted by the motion,it’s designed to replacea standard light or fan switch.The products use advanced passive infrared sensor(PIR) and MCU control technology which offers better stability than the traditional motion sensor,it’s easy and accurate to adjust the Time Delay,Detection Range,Light sensor value and Operating Mode (Occupancy/ Vacancy/On-Off).
Technical Specifiction
Power Source:110V~265VAC
Power Frequency:50/60Hz
Detection Range:6~9m(≤150℃)
Working Humidity:< 93%RH
Installation Height:1.2m~1.6m
Working Temperature: -20~+40℃
Motion Detection Speed:0.6~1.5m/s
Time-Delay:Default 1min(15sec,1min,3min,5min,15min,30min adjustable)
Light sensor:Default 25Lux(±10Lux),15Lux,35Lux optional
(Switch’s light sensor is sensitive to(infrared)thermal light source like sunlight,
nature light,incandescent lamp;it’s not sensitive to cold light source like LED light,fluorescent light)
Compared:

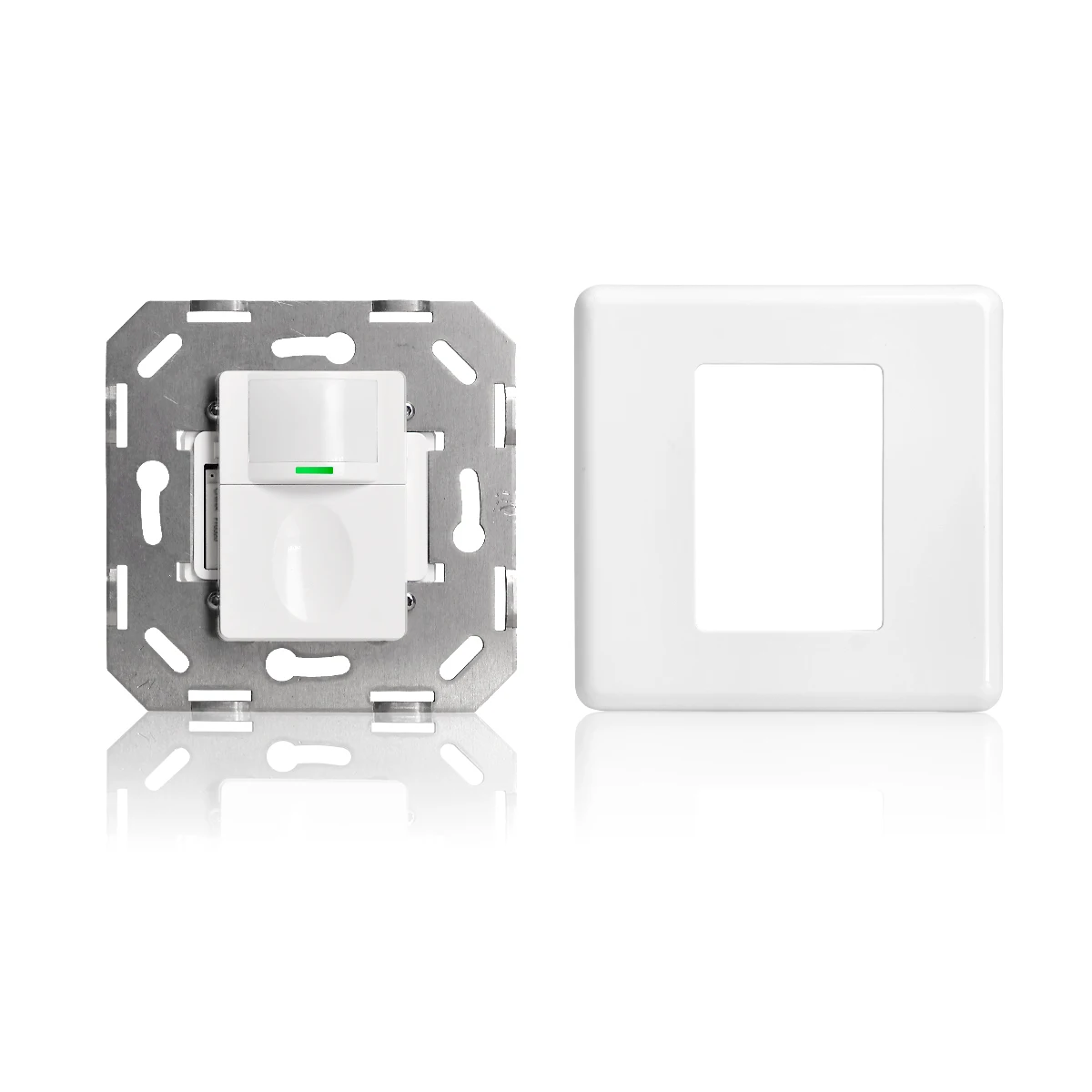

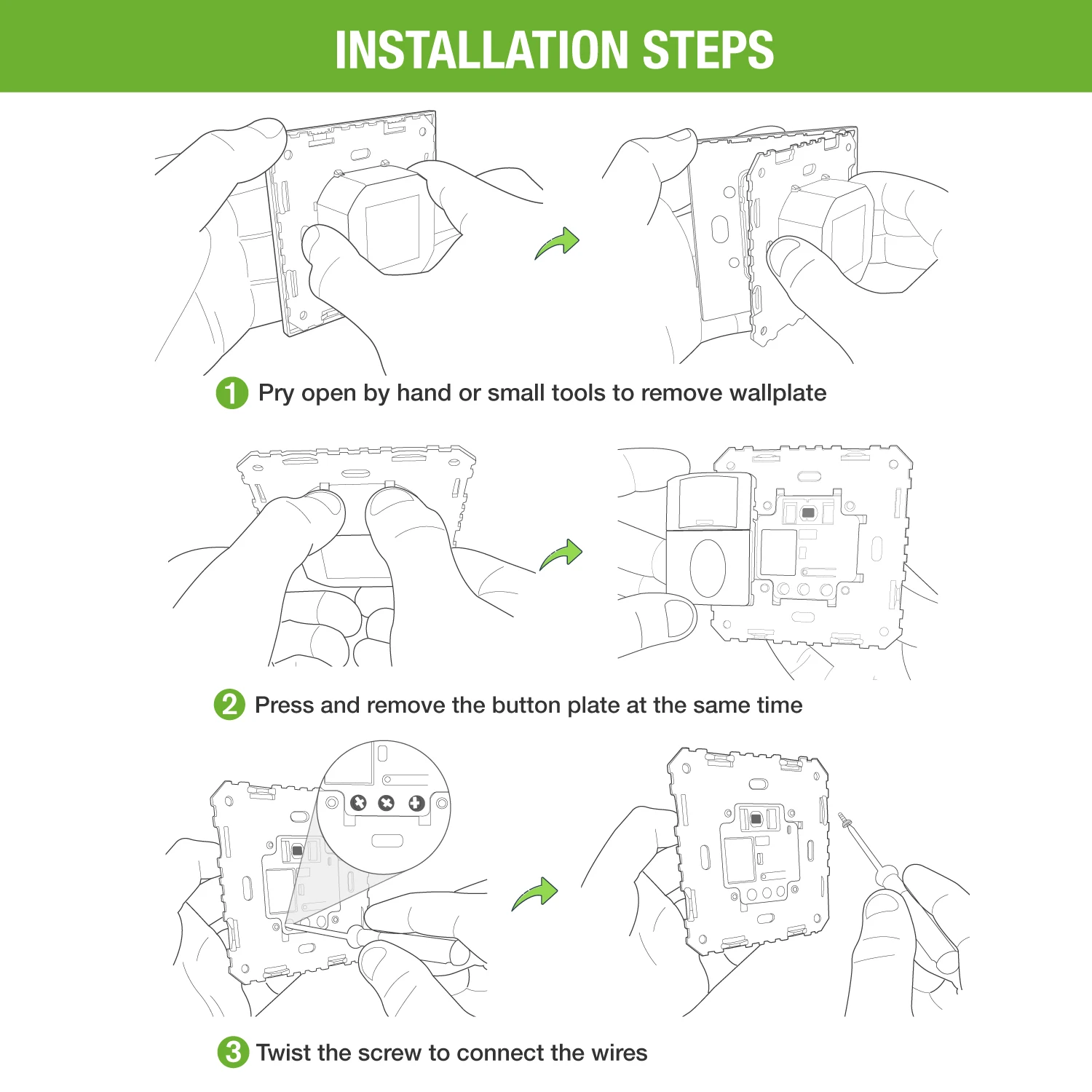

There is no need to disassemble the surface panel to adjust, just use the button to change the time delay/sensitivity/light sensor value/mode.Minus the trouble of frequent use of screwdrivers to adjust.Easily get rid of the traditional old-fashioned time adjustment method, and reach your needs more conveniently.
3 IN 1 Smart Modes
Occupancy mode→ Auto ON-Auto OFF(after time delay)
Vacancy mode→ Manual ON and Auto OFF(after time delay)
Occupancy mode without light sensor→ Auto ON and Auto OFF day and night
ON/OFF mode→ Manual ON and Manual OFF(Press big button to escape)
You can switch at any time according to your needs.

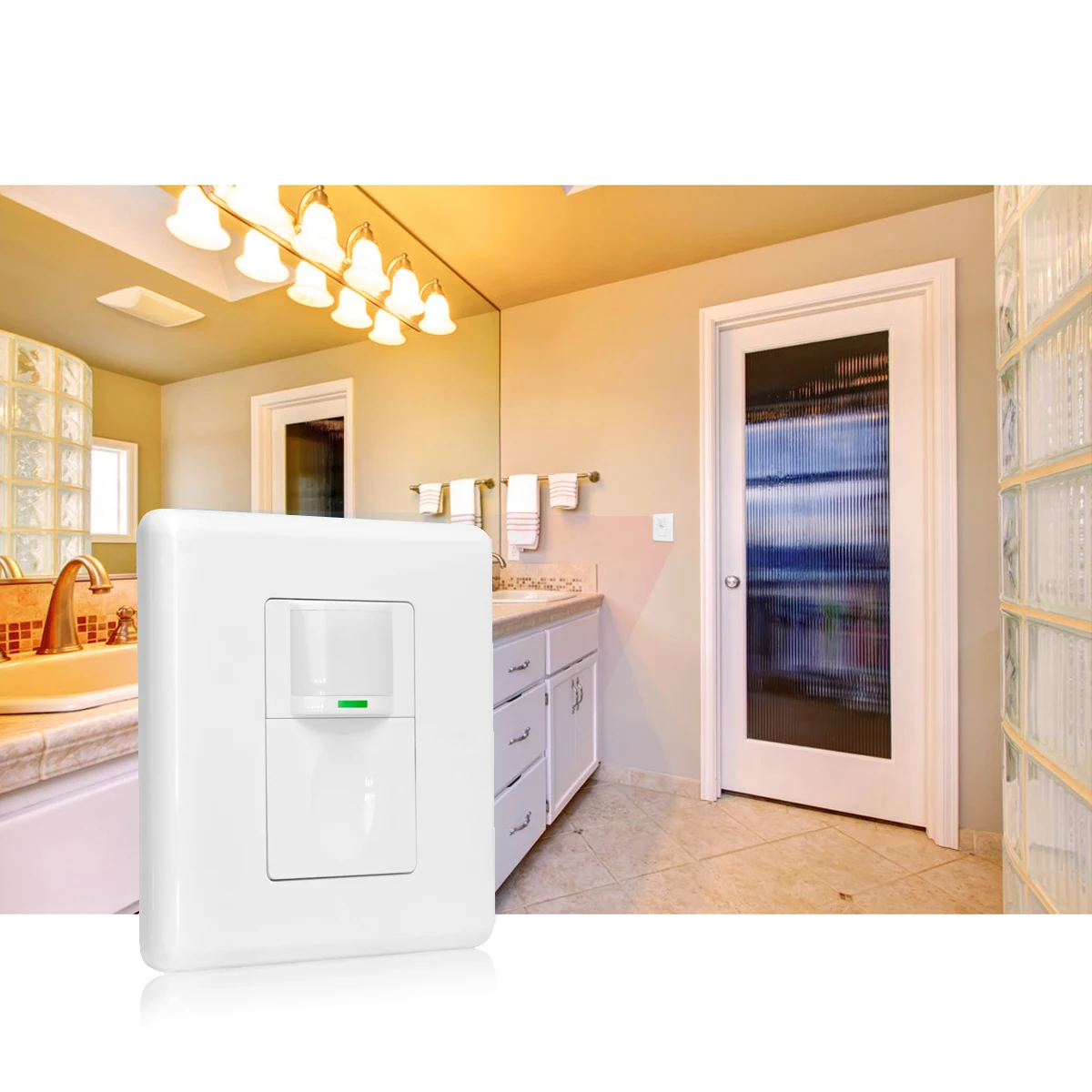

Strong practicality:Suitable for classrooms, living rooms, bedrooms, corridors, meeting rooms, offices, bathrooms, laundry rooms and other indoor environments.Make your daily life more comfortable.
Note: 1. Please do not install it too close to windows/lights/air conditioners, and avoid direct sunlight or reflections, otherwise the generator will be easily damaged.
