1. Product Overview

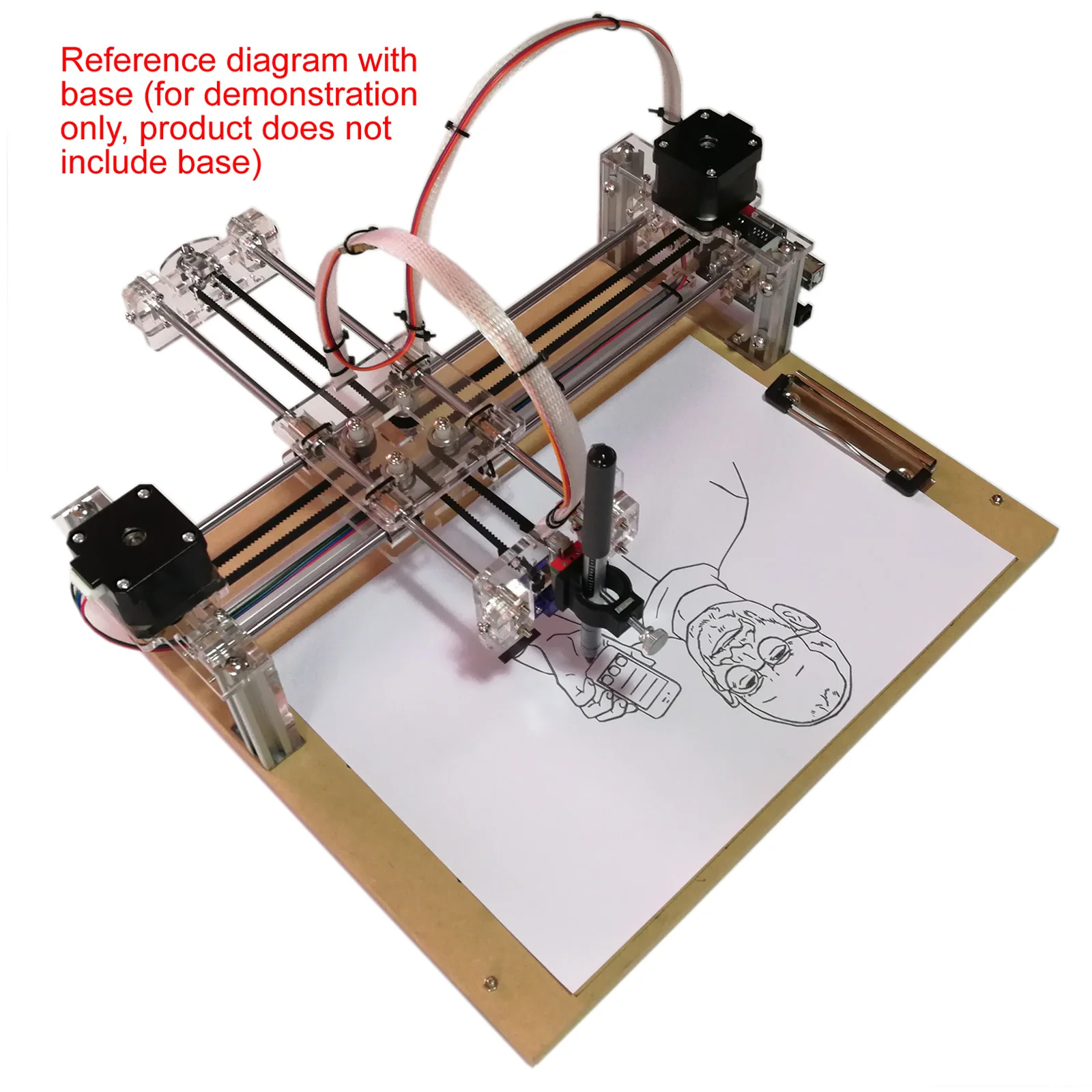

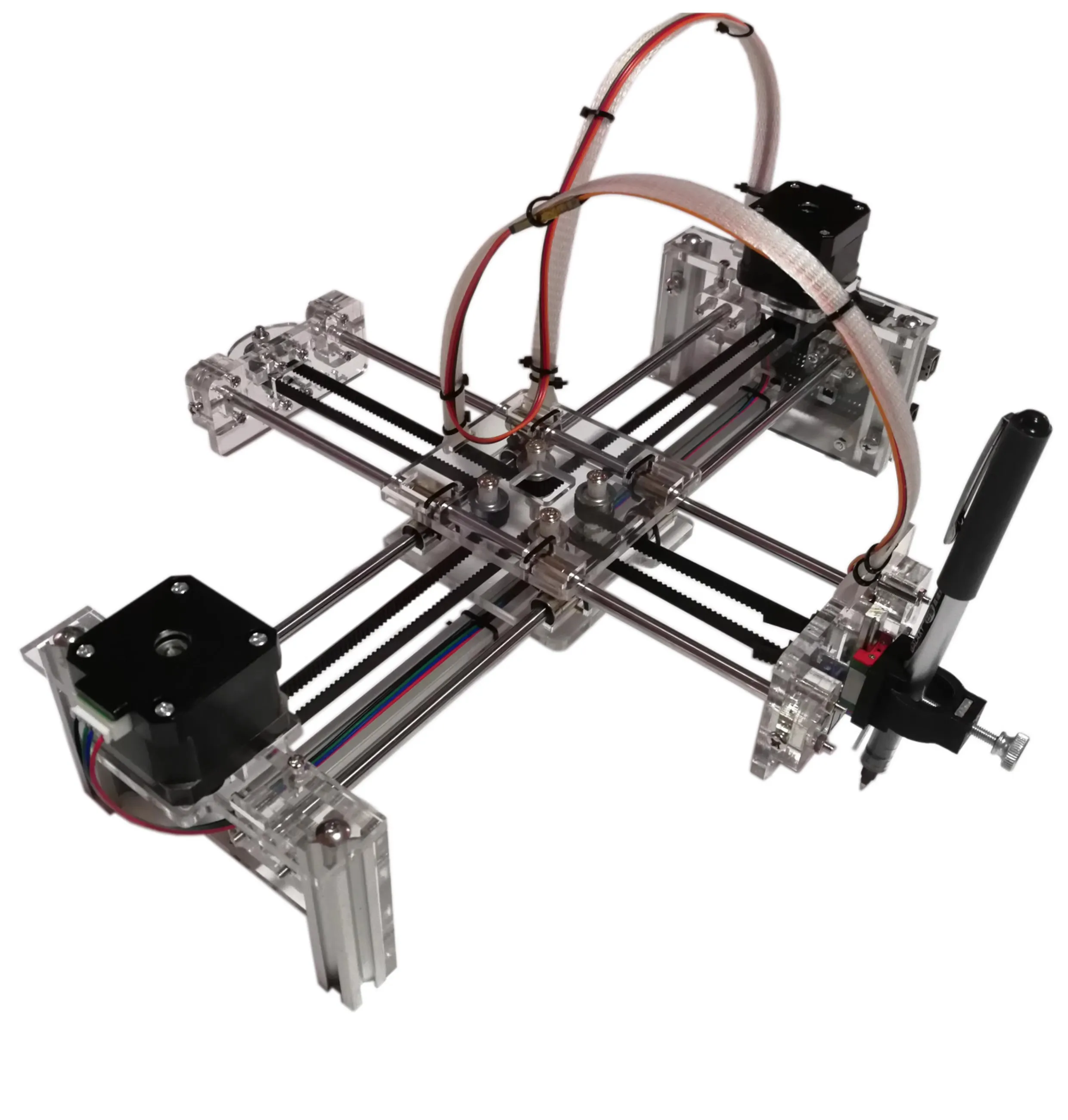

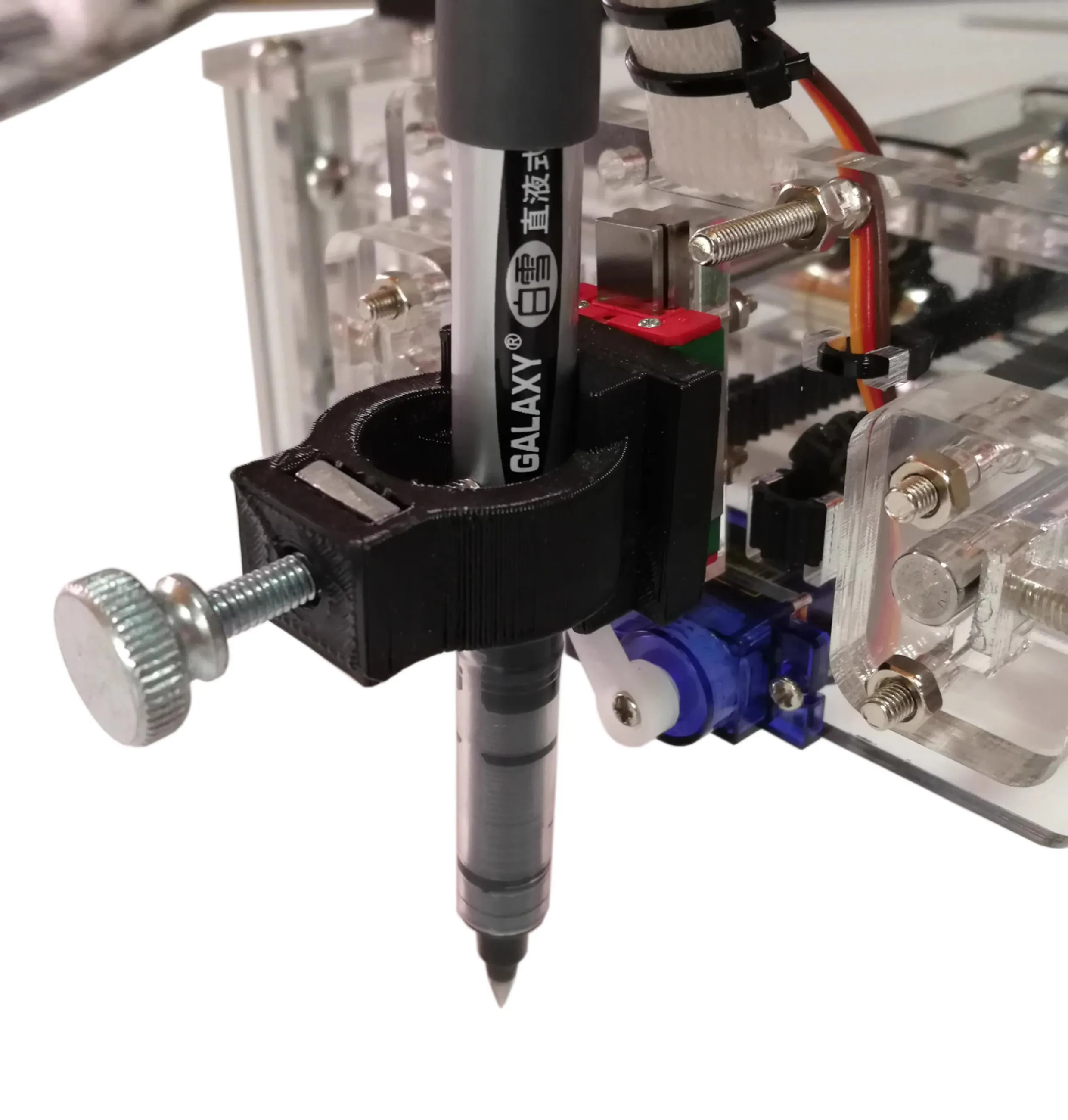

The AX5 writing machine frame is made of 1515 industrial aluminum profiles, paired with a 5MM acrylic panel. The XY axis is guided by a 6mm diameter optical axis with linear bearing movement. The up and down pen lifting mechanism adopts a micro linear guide system. The XY axis stroke of this kit is 210 × 150mm is the same size as A5 paper, equipped with a standard 42 stepper motor and brand TS90 servo, with a recommended running speed of 3000mm per minute. This kit adopts the open-source Arduino system, which, in conjunction with relevant software, can be used for writing, drawing, etc. on paper materials. This kit is packaged in loose parts, with a packaging weight of around 2KG. Customers need to have some hands-on skills in assembly and debugging, and provide assembly instructions and source code. This kit has a USB interface and can work when connected to a computer. It is recommended to use the WIN7 system.
2. Package Introduction

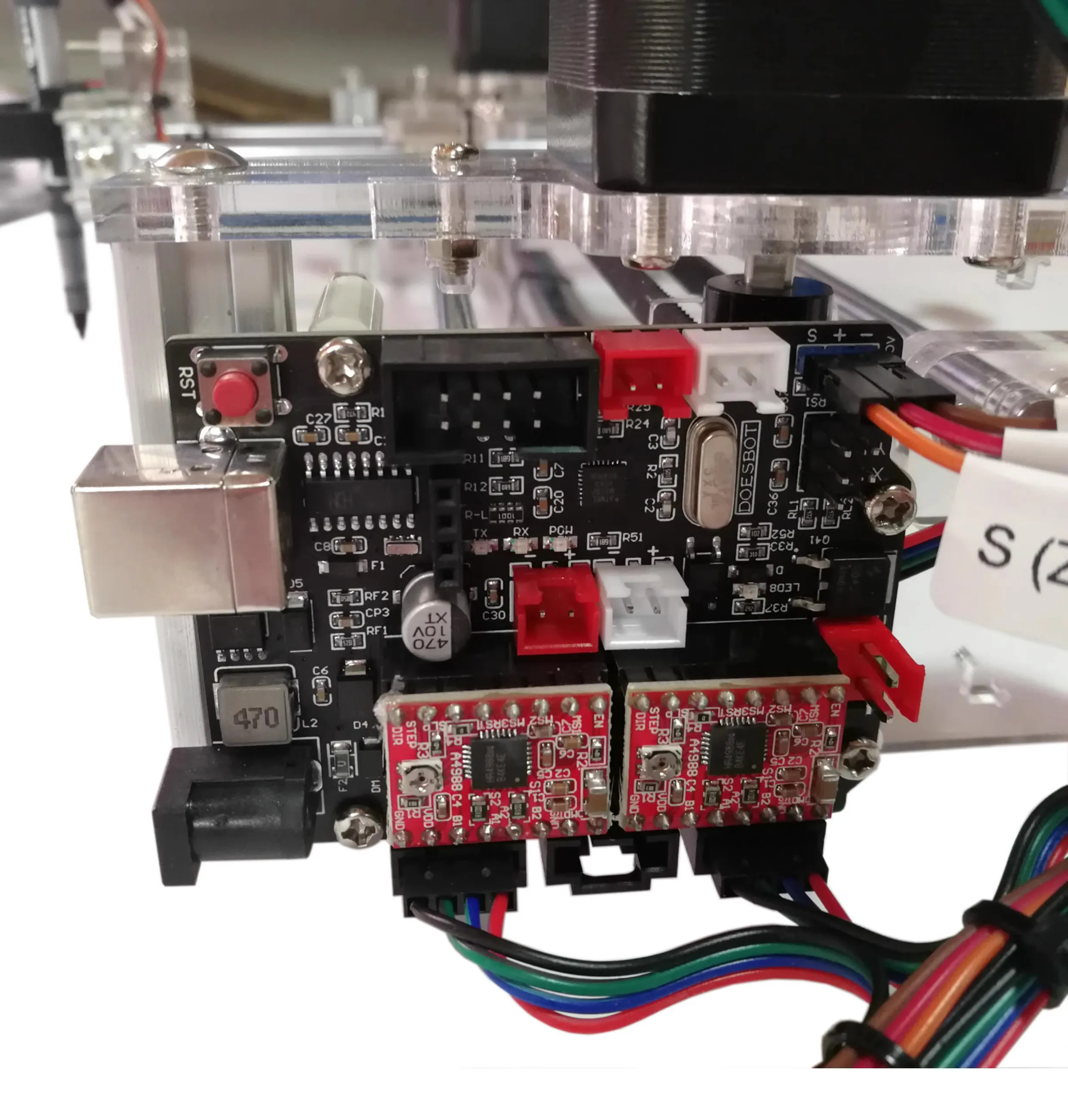

The brand new 42 stepper motor+brand new linear guide rail+Arduino uno professional integrated control board, machine color (transparent acrylic+silver aluminum profile), 12V 2A power supply, Provide one A4988 driver and one TS90 servo as a gift, as well as one straight liquid ball pen.




The product is constantly being updated, please refer to the actual product as the standard
