Feature:
1.Sensitivity: The PIR motion sensor switch is highly responsive, quickly detecting motion and ensuring prompt activation.
2.Stable Performance: The IR infrared detector light switch module delivers consistent and reliable performance, ensuring that it functions seamlessly without interruptions.
3.Energy-efficient and Environmentally Friendly: With its energy-saving design, the PIR sensor LED switch helps reduce electricity consumption, promoting environmental sustainability.
4.Compact and Easy to Install: The compact design of the infrared PIR motion sensor detector switch makes it effortless to install, fitting into various spaces conveniently.

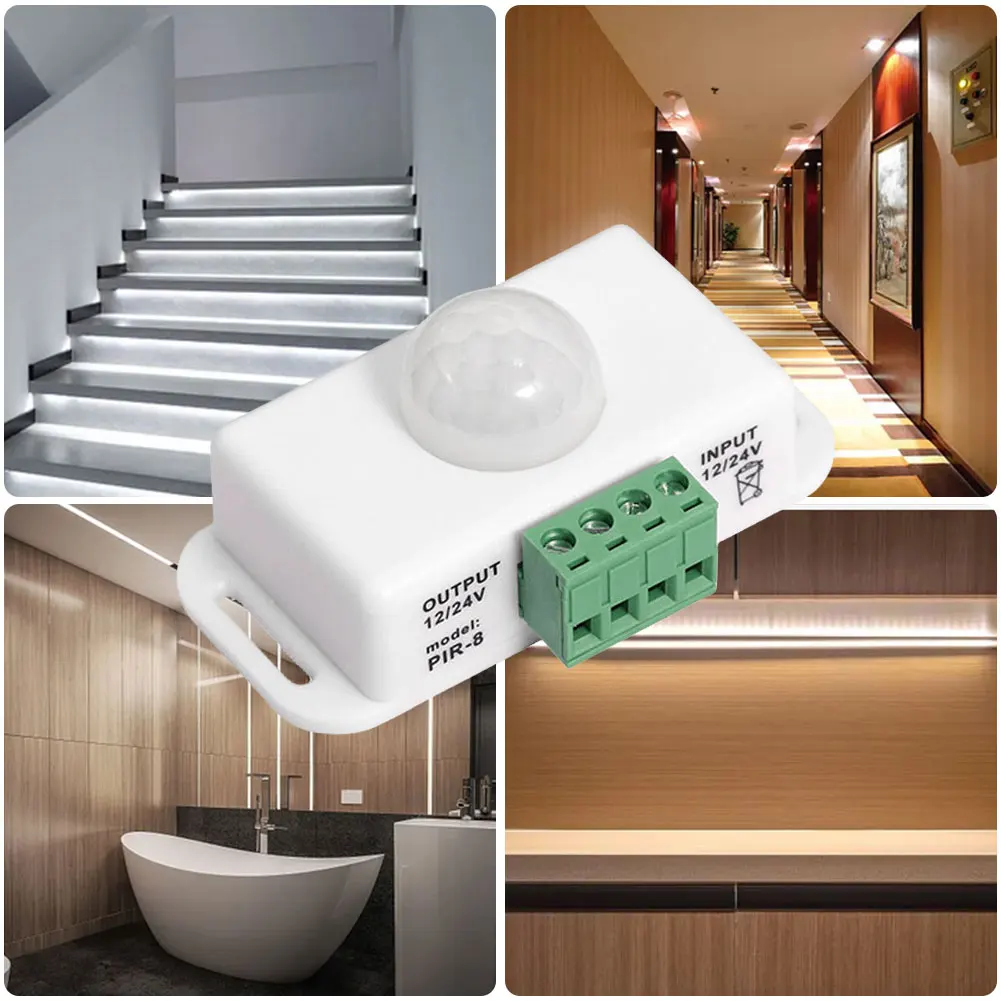

5.Wide Range of Applications: This PIR motion sensor light switch can be widely used in public places such as stairs, corridors, bathrooms, cabinets, office buildings, schools, and communities. It can control strip lights and low-voltage lamps in various buildings. The sensor automatically switches the load (lights) based on the detected changes in the human infrared spectrum. It turns on when someone approaches and turns off when there is no motion, providing a user-friendly, convenient, and energy-saving experience.
Specification:
Origin: Mainland China
Material: Polymer
Material: Flame retardant ABS
Working temperature: -20-60°C
Supply voltage: 10.5-16V or 21-32V
Output voltage: 10.5-16V or 21-32V
Output: 1 circuit

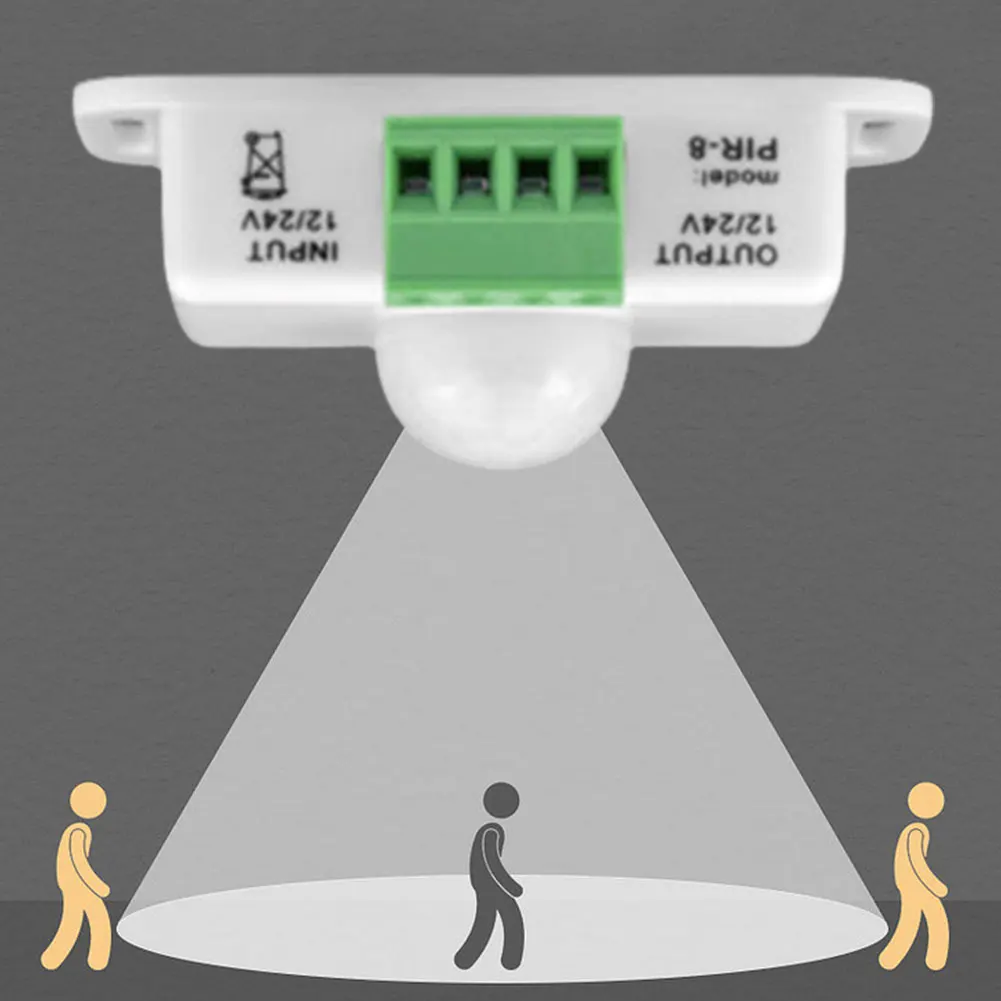

Sensing distance: 8 M
Response angle: 60 degrees
Output current: <6A
Delay time: 1-10 minutes (adjustable)
Operating Temperature: -20°C-an60°C
Rated load: 6A

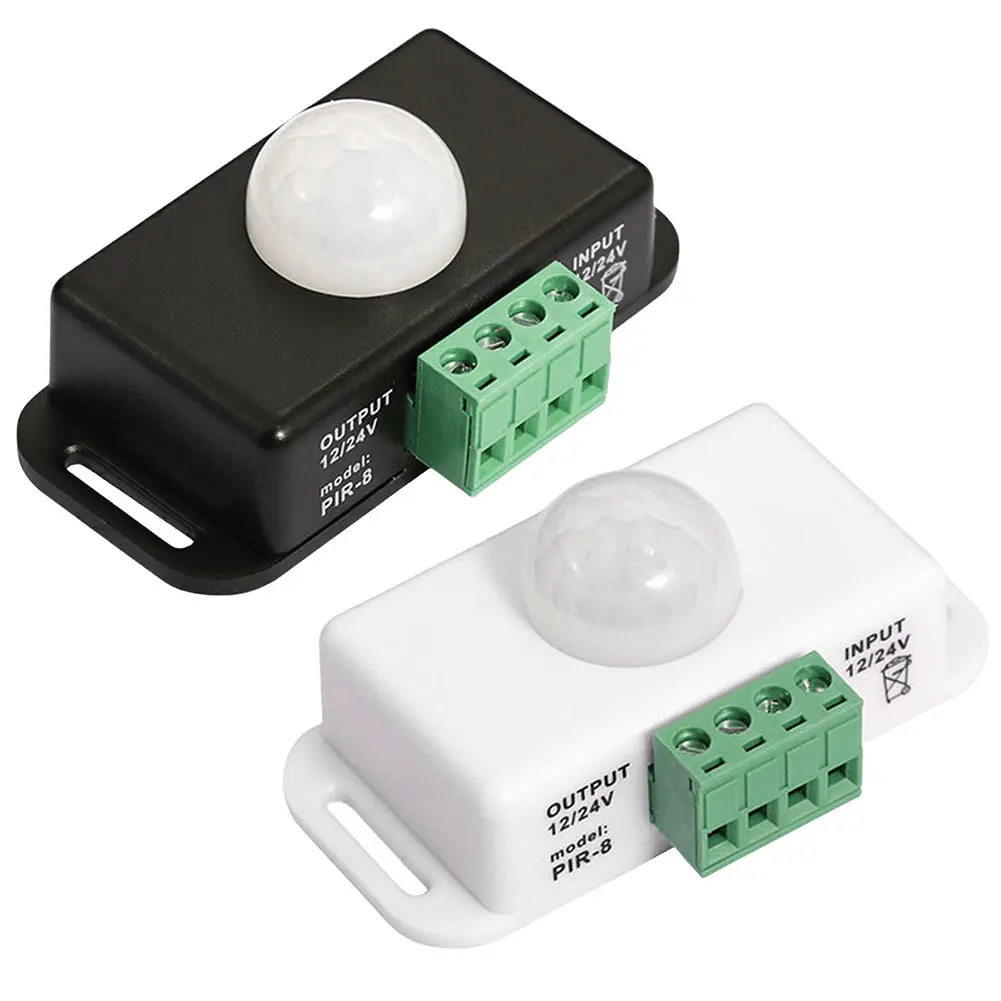

Product colour: black/white

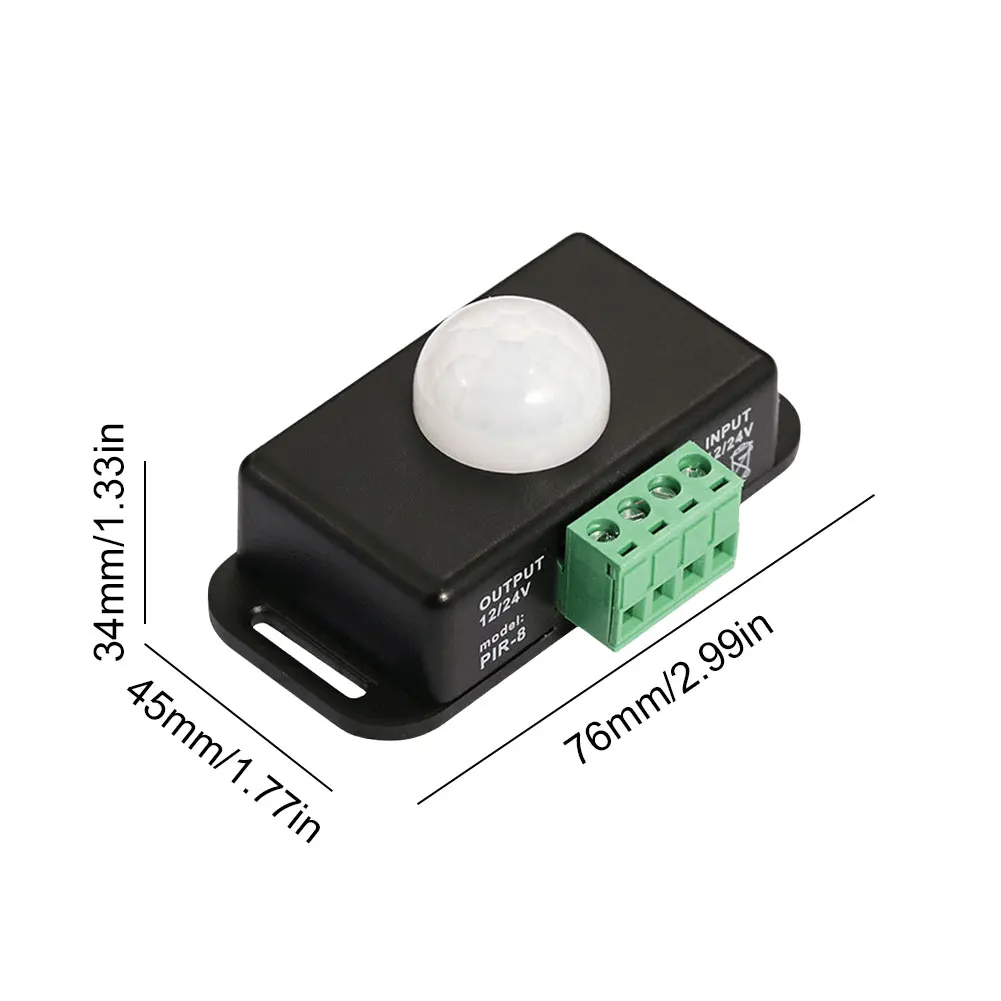

Product Size: 76*45*34mm/2.99×1.77×1.34inch
Power consumption:
Operating voltage: DC12V 4V
Operating frequency: 50/60Hz
No light sense: 24 hours work
Working humidity: <93%RH

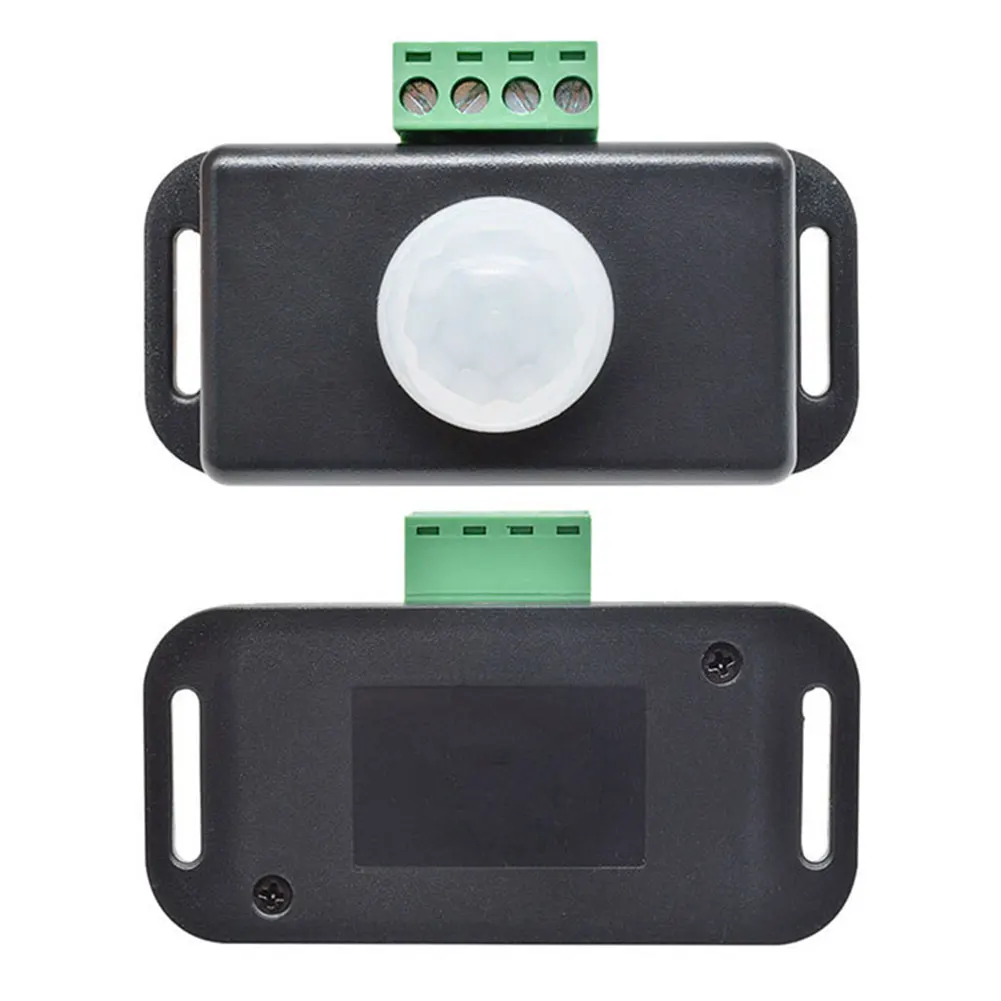

Mounting: screw fixing, 2 fixing holes (mounting hole spacing 66mm)
The human body sensor switch is an infrared detection controller that uses infrared detection around the load switch. Users can install the human body sensor in a suitable environment according to the actual need.
1. Connect the wiring first, then connect the power cord; make sure there is no short circuit between the connecting wires before turning on the power;
2. There is a time setting button on the back of the controller. Turn the knob to delay the number of minutes the switch is off. When the personnel leave the set number of minutes, the load light turns on and the load light turns off automatically.
3. The signal output and input wires of the controller should be connected correctly.
Wiring instructions
Input power input interface connects to DC12-24V power supply.

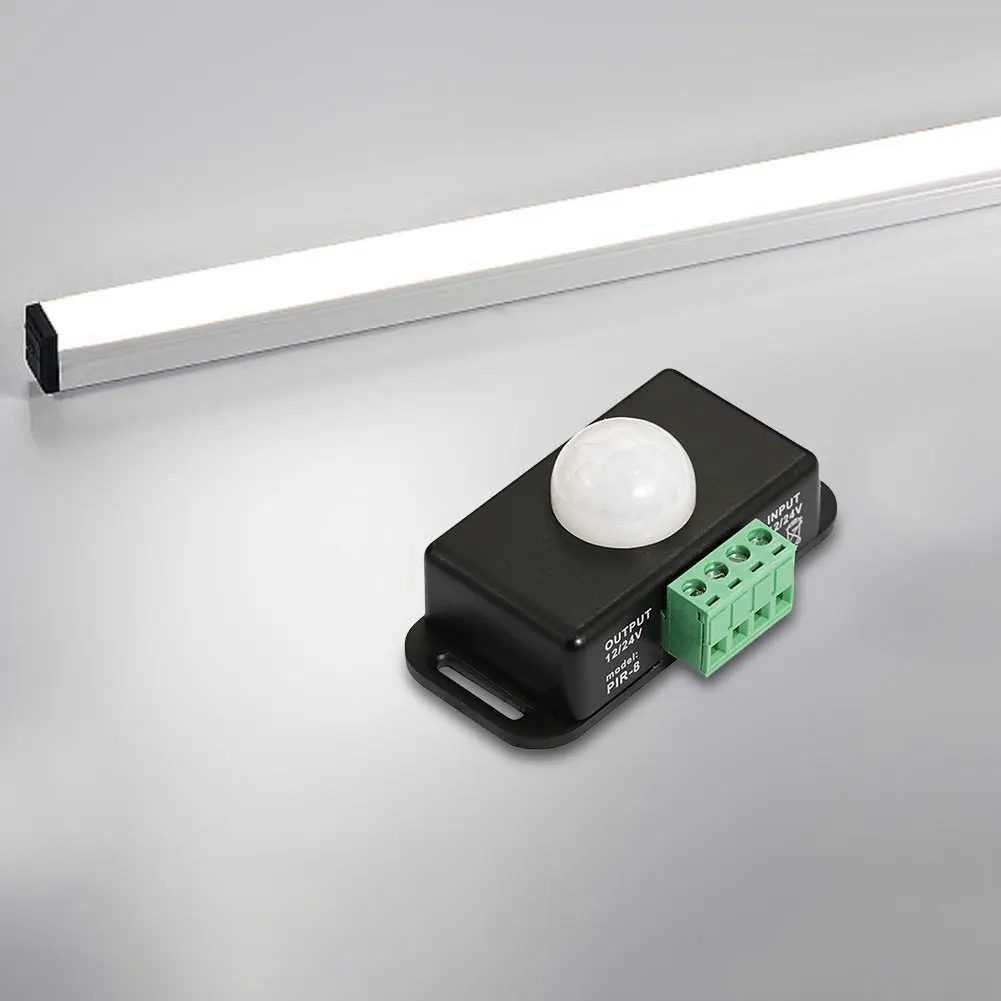

OUTPUT Load output interface connects to the light strip.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
