Relay Receiver Board Parameter
Working Voltage : AC 85~265V
Max current : 15A
Load Current : 4000W
Remote Control Battery : 2*CR2016(Include)
RF frequency : 433MHz
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 25 pieces
Support encoding :1527 Leaning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 70 meters
Remote operating mode : Toggle Mode/Latched Mode
Use: Press *ON* button -> The Home Appliances OR Light will turn ON;
Press *OFF* button ->The Home Appliances OR Light will turn OFF.
Features:
1:Without WIFI, you can use wireless remote control to control home appliances, especially for the elderly and children;
2: 15 Amps 4000 watts relay: can meet the use of high-power matching;
3: Two control methods: Remote control or socket power button control;
4:Flexible matching method: 1 remote control can control 4 sockets at the same time, or 25 remote controls can control one socket at the same time;

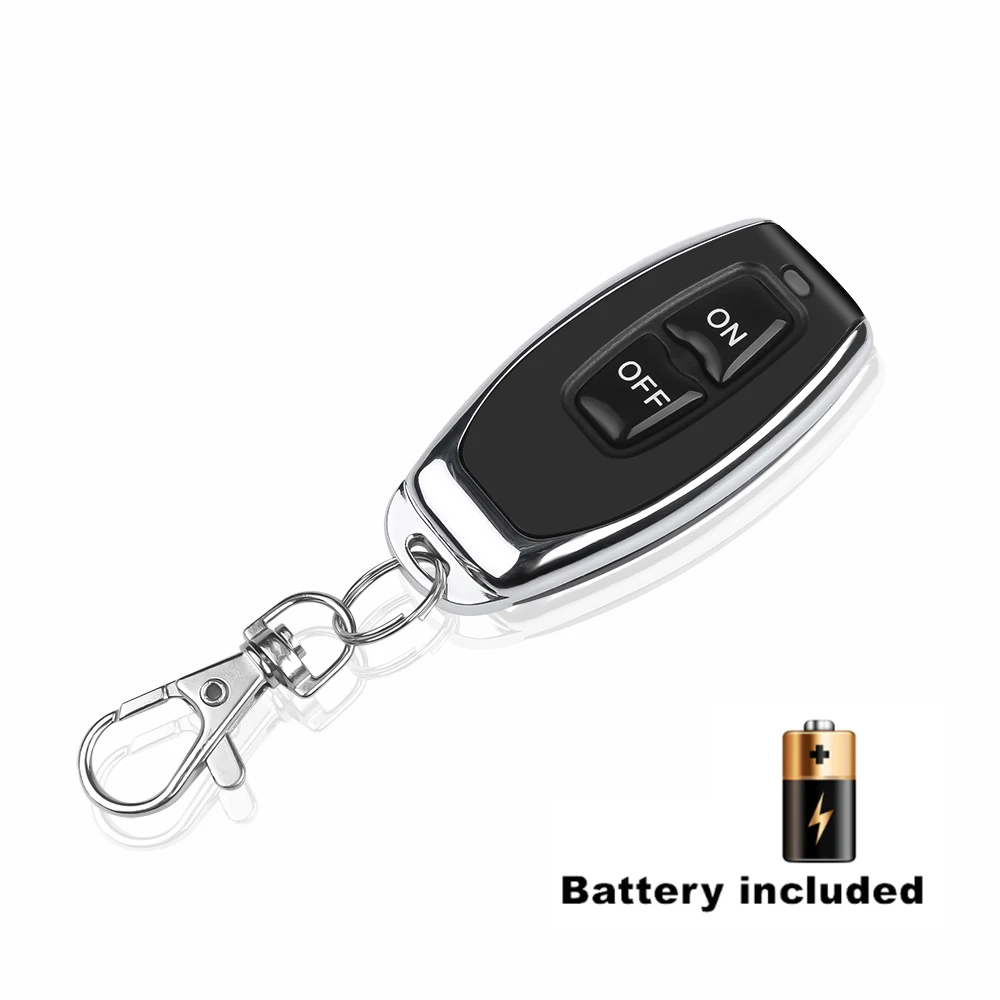

5:The remote control is equipped with a 27A12V battery, which can meet 5000 control times;
6:There is a hook on the mini remote control, you can hang it on the surface of the object at will.
Setting: 1.According to the picture above, Press and hold the learning button until the indicator flashing twice .
2.Press the *ON* button, the indicator flashing twice.
3.Press the *OFF* button, the indicator flashing twice.
4.Success
Clear signal(Once the signal is cleared, the remote control cannot control any sockets, and the signal needs to be re-matched.)
Press and hold the learning button until the indicator LED(on the socket)flashing 8 times (It may cost about 7 seconds). The socket will reset succeed.
