433mhz Wireless Dimmer Light Switch AC 110V 220V 230V Dimmable Switch Remote Control Module for 10~150W LED Bulb Halogen Dimming
Effective control distance up to 50 meters
NOTE:
!!! Not suitable for lamps with transformer/ballast !!!
Product Advantages
▶Mini Body,2 wiring modes
The small-sized module can be directly connected to the lamp for use, or it can be connected to the lamp and used together with the original manual switch.
▶Supports Multiple Remotes
One receiver module can be paired with multiple remote controls to control lights more conveniently.
▶Stepless dimming
You can adjust the light brightness at will.
▶Supports <150W lamps
Support AC 110V~250V voltage, <150W power lamp.
▶50 meters remote control distance
The remote control distance can reach 50 meters (open space), and the remote control is equipped with batteries.
▶Comprehensive after-sales and service
Fast logistics. Goods will be shipped within 24 hours after an order is placed, and can be delivered within one week to most countries and regions.
Our after-sales service team can provide the most professional solution to any of your problems.

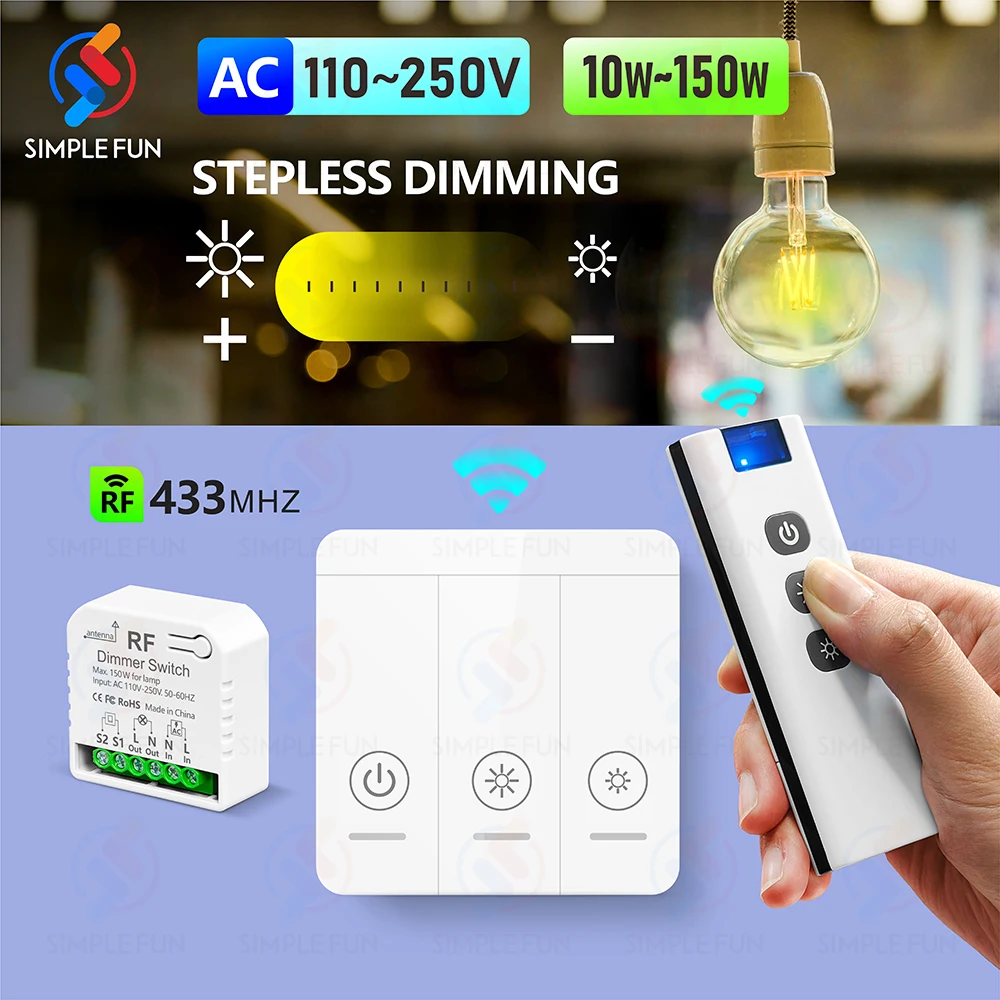

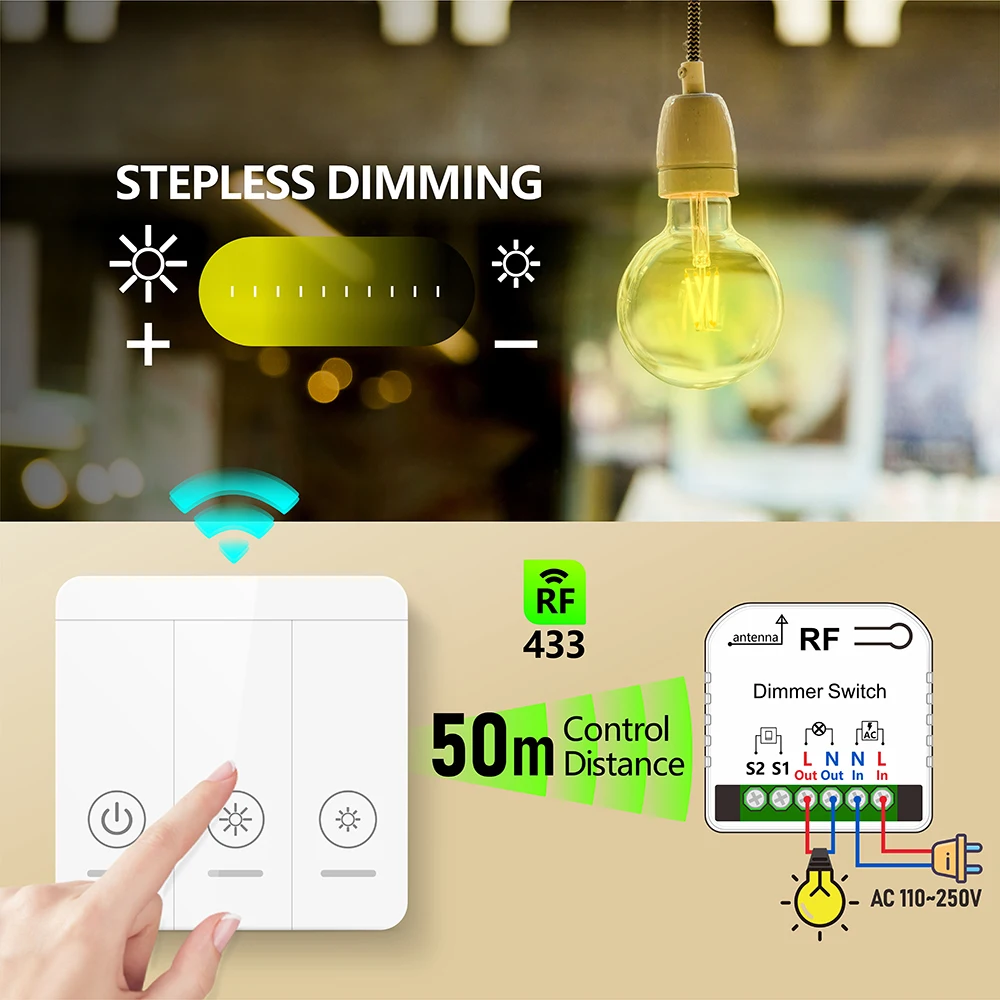

▼Stepless dimming,50 meters remote control distance▼

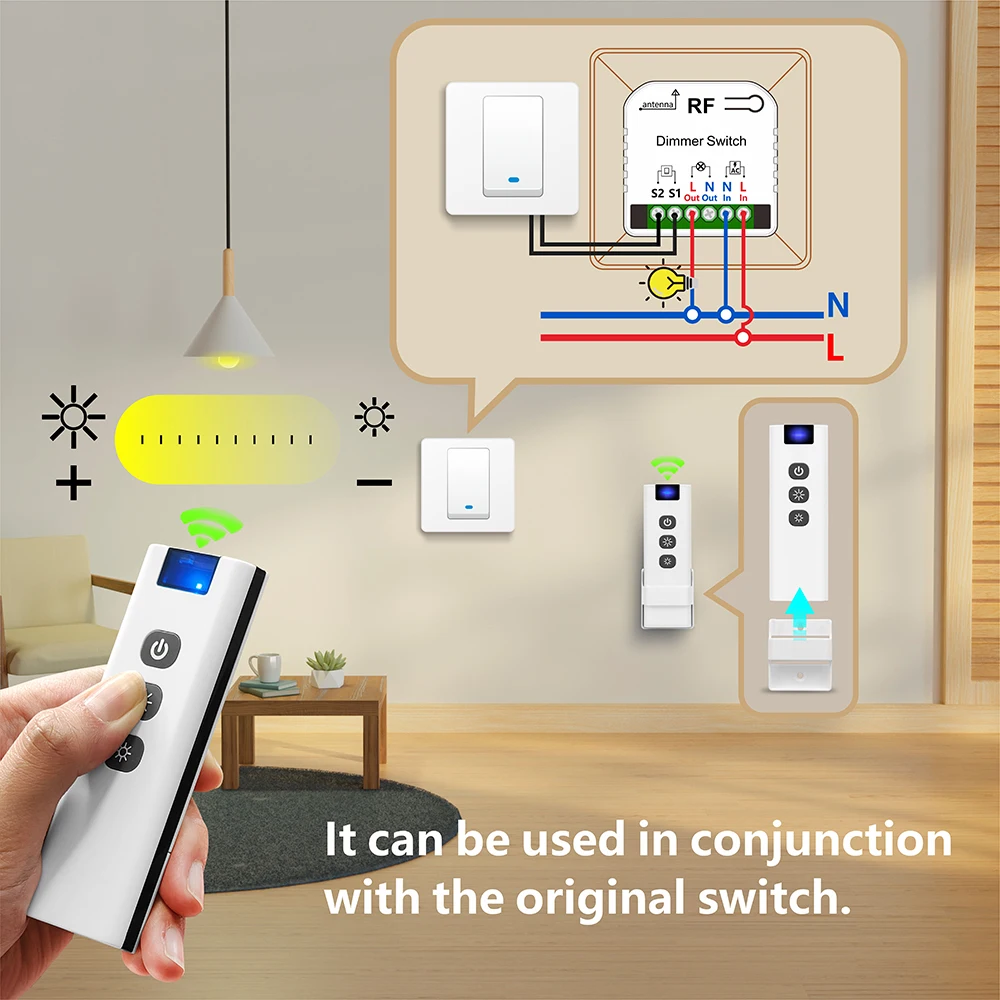

▼Can be used with original manual switches▼

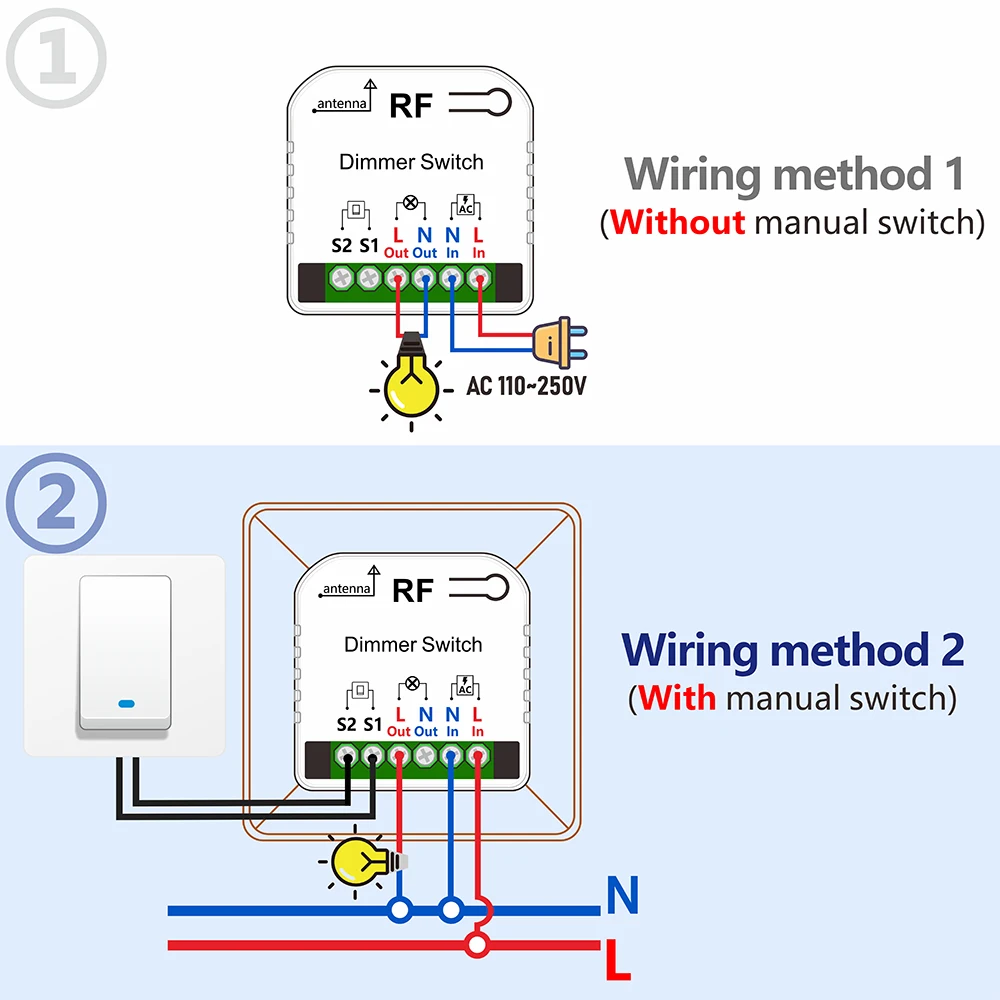

▼2 wiring modes▼

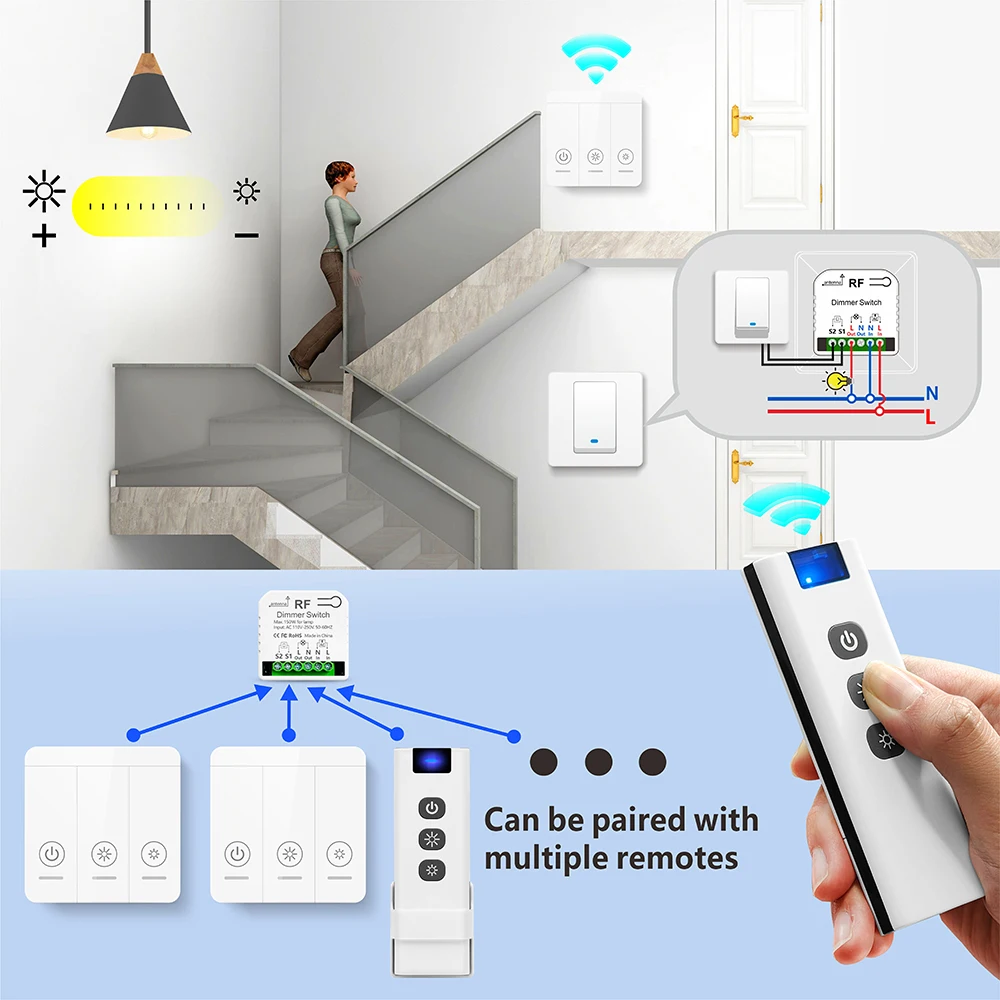

▼Supports Multiple Remotes▼
One receiver module can be paired with multiple remote controls to control lights more conveniently.

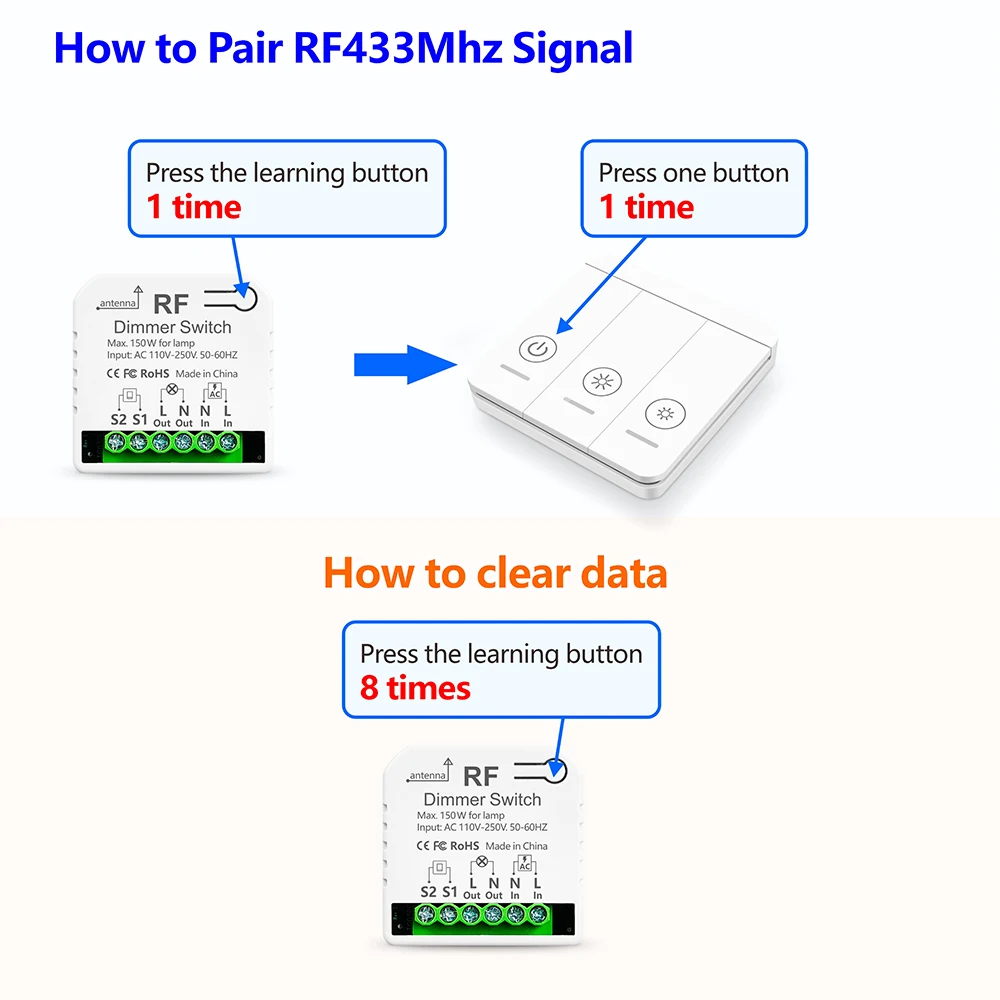

▶Setting
Clear data:
Press the learning button (on the receiver) 8 times. Existing data will be successfully deleted.
Pairing
1. Press the learning button (on the receiver) 1 time,
2. Press one button on the remote 1 time , Wait for 3 seconds.Succeed.
Parameter

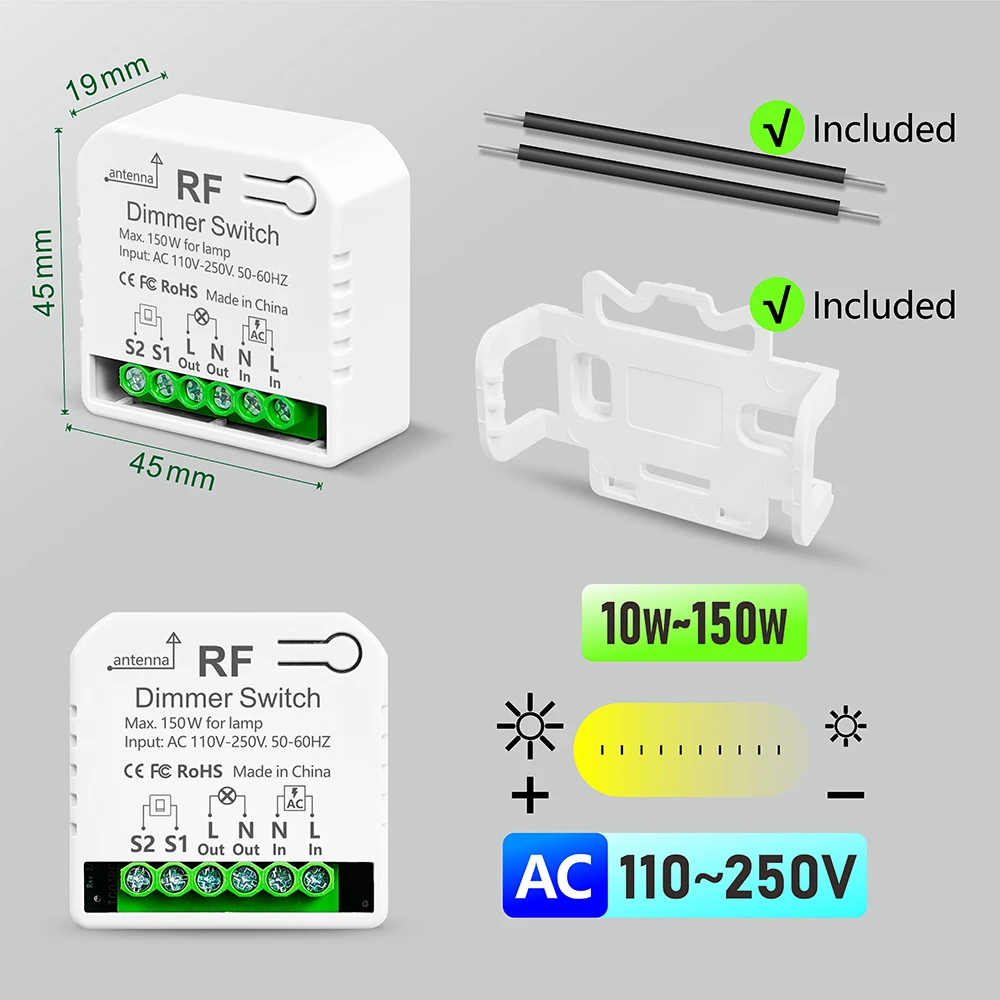

▶Mini Dimmer Receiver Module :
Working voltage : AC 110V~250V 50/60HZ.
Max load :150W.
RF Frequency : 433.92MHz.
Receiving Distance : up to 50m
Code : 1527 learning code.
Size: 45*45*19 mm.
Work with remote : Can be controlled by 15pcs remotes.

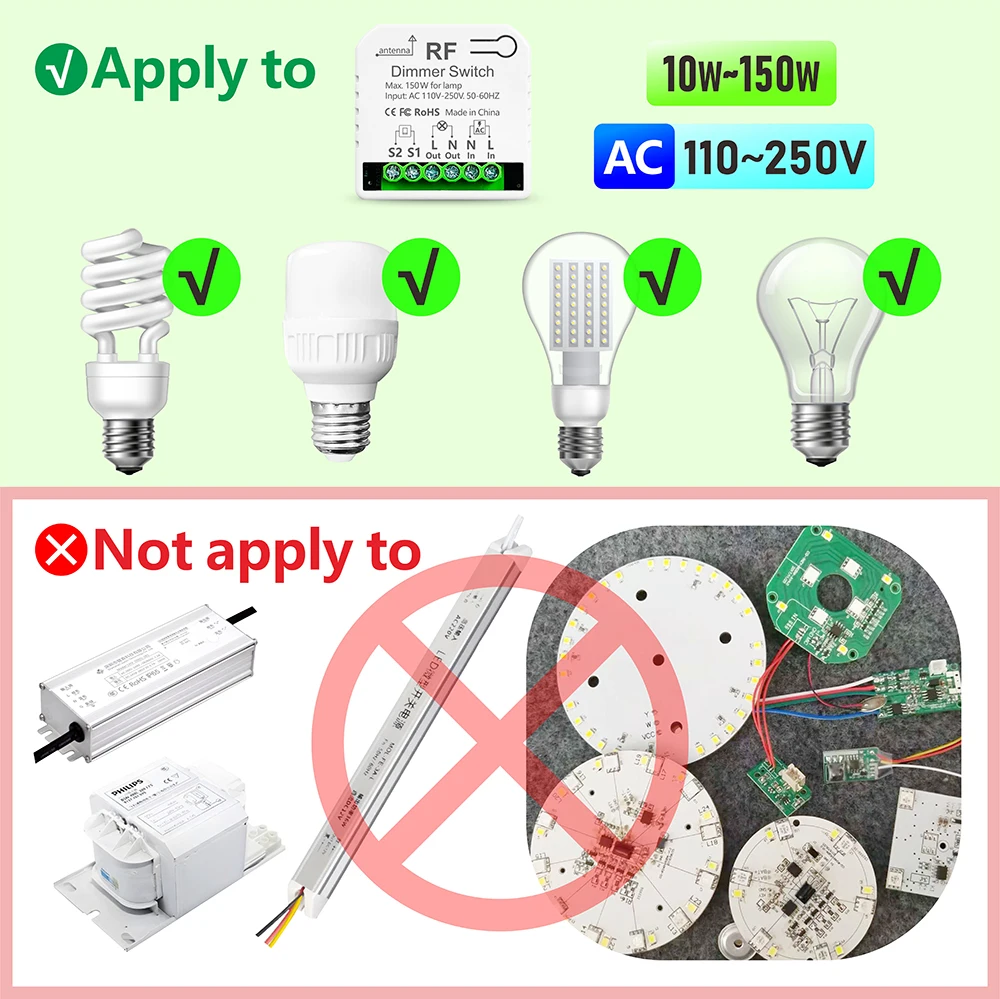

Appliance : LED Bulb Halogen (no transformer or ballast).

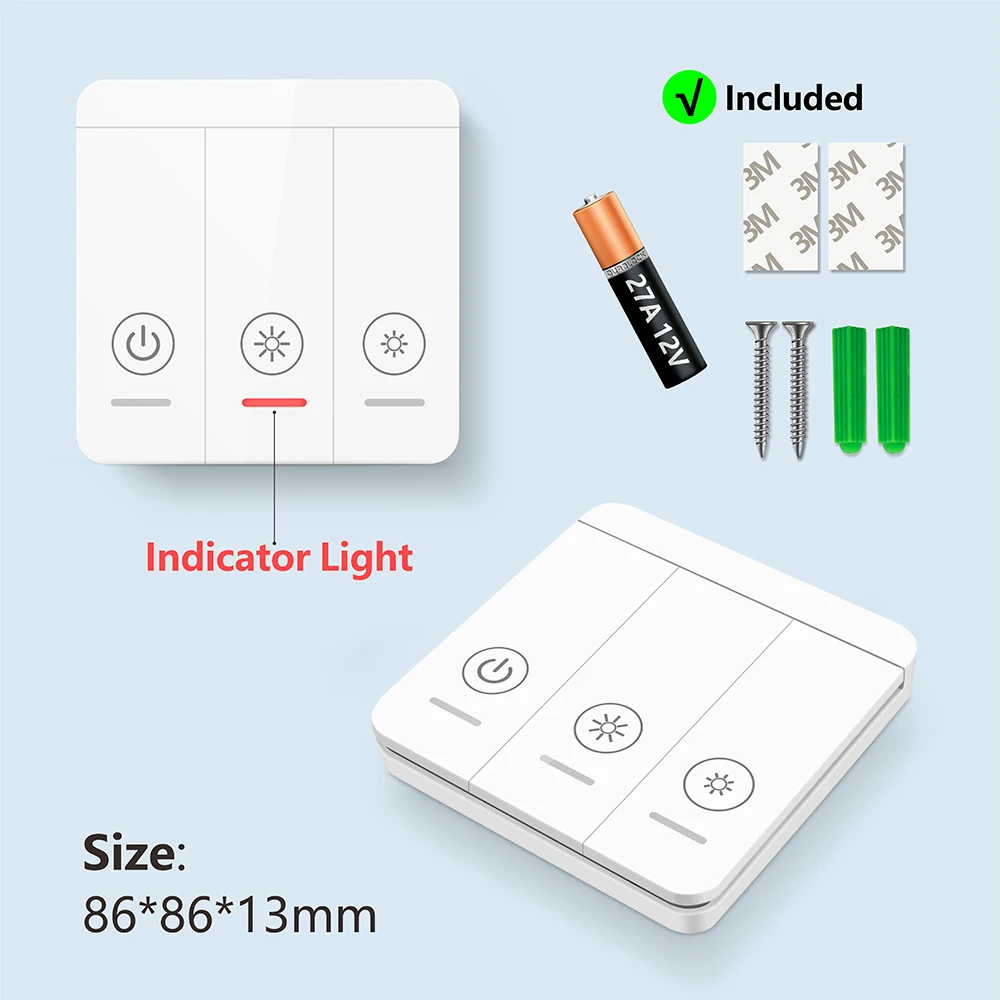

▶RF433mhz Wireless Wall Panel Switch
Support encoding : 1527 Leaning code
RF frequency : 433.92MHz
Remote distance : up to 50m (theoretical distance)
Size: 86*86*13 mm.
Battery : 27A 12V(Included)
Screw: Included
Double-sided tape: Included

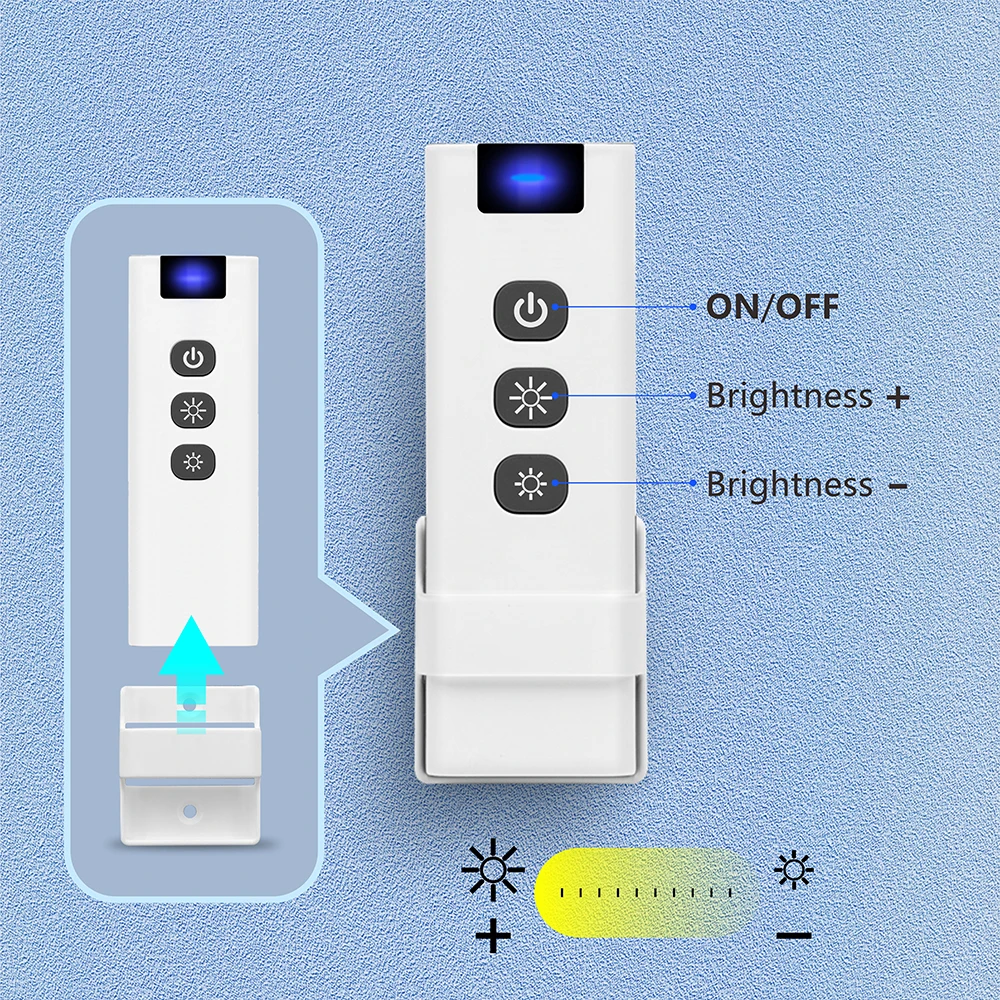

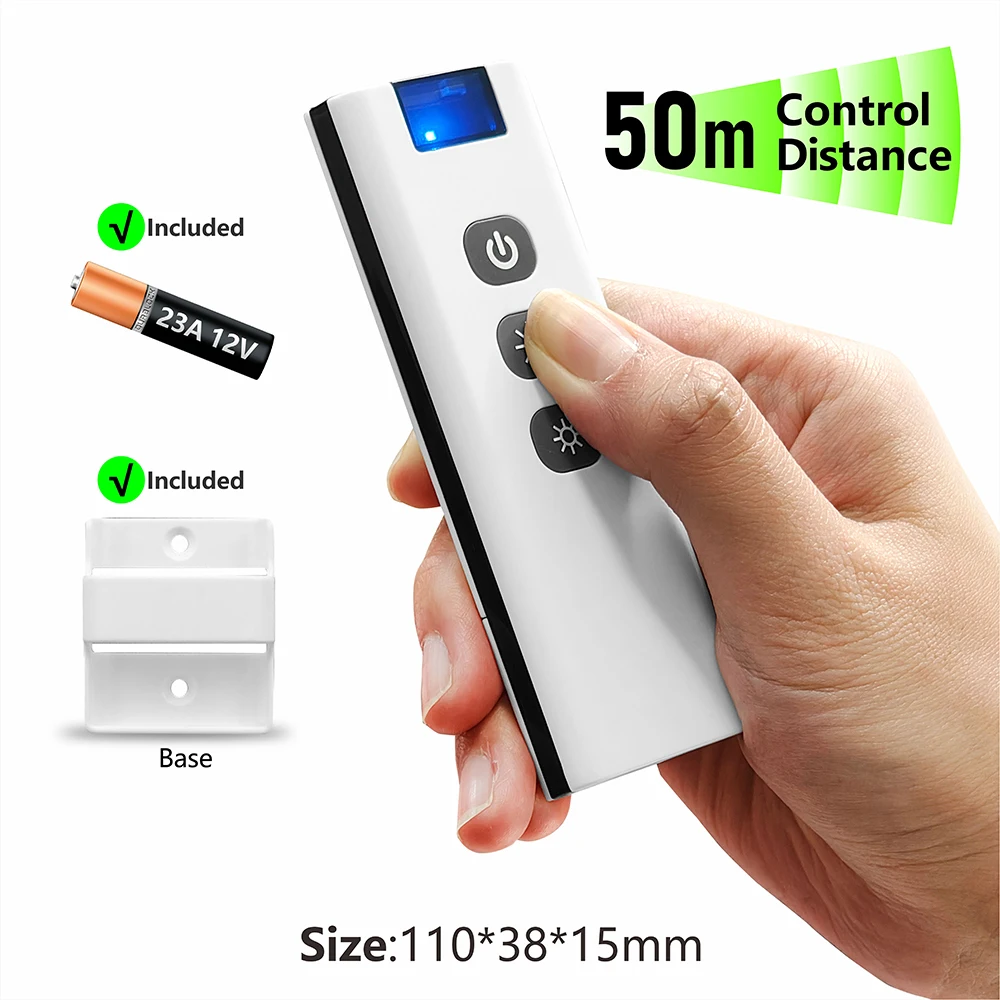

▶Remote controller
RF frequency : 433.92MHz
Control Distance : 50 meters in open space
Material : Plastic
Support encoding : 1527 Leaning code
Battery : 23A 12V(Included)
Size:110*38*15 mm
▶Please contact with us if you have any questions.Thank you.
▶We have own factory,if you want to do ODM OEM bussiness,please contact with us.
